The installation of a ball screw is a critical task that requires precision and expertise. Ball screws are integral components in various industrial applications, providing smooth and efficient linear motion. Understanding the intricacies of installing a ball screw can enhance the performance and longevity of machinery. This article provides a comprehensive guide on how to install a ball screw, highlighting the importance of choosing the right Ball Screw manufacturer to ensure quality and durability.

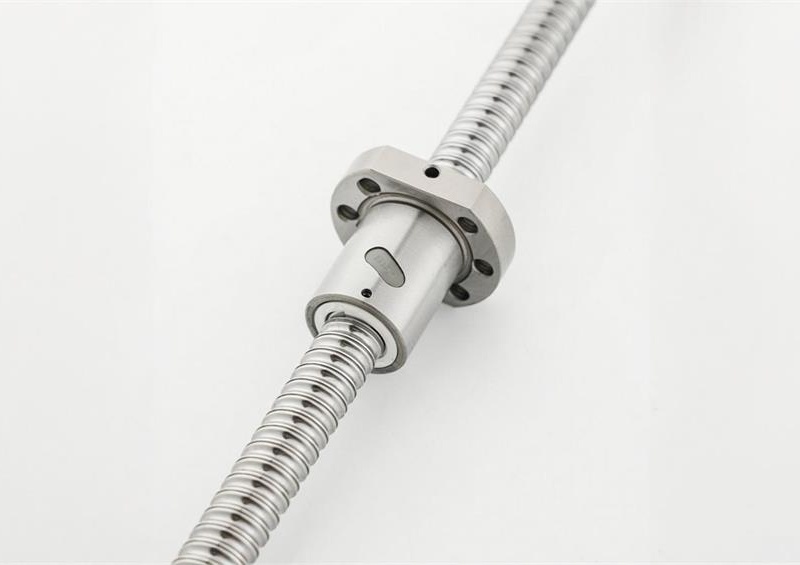

Ball screws are mechanical devices that convert rotational motion into linear motion with high efficiency and precision. They consist of a screw shaft and a ball nut, which houses the ball bearings that facilitate smooth motion. The design of ball screws allows for minimal friction, making them ideal for applications requiring high precision and load capacity. Various types of ball screws, such as Ball Screw Nut High-Speed Precision, are available to meet different industrial needs.
Ball screws come in various types, each designed for specific applications. The most common types include precision ball screws, heavy duty ball screws, and CNC ball screws. Precision ball screws are used in applications requiring high accuracy, such as CNC machines and robotics. Heavy duty ball screws are designed to handle large loads and are commonly used in industrial machinery. CNC ball screws are specifically designed for computer numerical control machines, providing the precision and efficiency needed for automated processes.
A typical ball screw system comprises several components, including the screw shaft, ball nut, ball bearings, and end supports. The screw shaft is the main component that rotates to provide linear motion. The ball nut houses the ball bearings, which reduce friction and wear. End supports are used to secure the ball screw in place and ensure smooth operation. Choosing high-quality components from a reputable Ball Screw manufacturer is crucial for the system's performance and longevity.
Installing a ball screw involves several steps, each requiring careful attention to detail. The following guide outlines the key steps involved in the installation process:
Before installation, it is essential to prepare the workspace and gather the necessary tools and components. Ensure that the installation area is clean and free from debris. Gather tools such as wrenches, screwdrivers, and alignment tools. Verify that all components, including the ball screw, ball nut, and end supports, are present and in good condition.
Begin by mounting the screw shaft onto the machine frame. Ensure that the shaft is aligned correctly to prevent misalignment, which can lead to premature wear and failure. Use alignment tools to verify that the shaft is parallel to the guide rails. Secure the shaft using appropriate fasteners, ensuring that it is firmly in place.
Next, install the ball nut onto the screw shaft. Carefully slide the ball nut over the shaft, ensuring that the ball bearings are correctly seated. It is crucial to handle the ball nut with care to prevent damage to the ball bearings. Once the ball nut is in place, secure it using locking nuts or retaining rings.
End supports are essential for maintaining the alignment and stability of the ball screw system. Attach the end supports to both ends of the screw shaft, ensuring that they are aligned with the shaft and guide rails. Use precision tools to verify the alignment and make any necessary adjustments. Secure the end supports using appropriate fasteners.
After installation, it is essential to test the ball screw system to ensure proper operation. Manually rotate the screw shaft to check for smooth motion and verify that there is no binding or excessive friction. Make any necessary adjustments to the alignment and tension of the ball nut and end supports. Conduct a final inspection to ensure that all components are secure and functioning correctly.
Regular maintenance is crucial for the longevity and performance of a ball screw system. Implement a maintenance schedule that includes regular inspections, lubrication, and cleaning. Check for signs of wear or damage, such as unusual noise or vibration, and address any issues promptly. Troubleshooting common problems, such as misalignment or excessive friction, can prevent costly repairs and downtime.
Proper lubrication is essential for reducing friction and wear in a ball screw system. Use high-quality lubricants recommended by the Ball Screw manufacturer to ensure optimal performance. Apply lubricant to the screw shaft and ball nut regularly, following the manufacturer's guidelines. Monitor the lubricant levels and replenish as needed to maintain smooth operation.
Regular alignment checks are necessary to ensure that the ball screw system operates efficiently. Use precision tools to verify the alignment of the screw shaft, ball nut, and end supports. Make any necessary adjustments to correct misalignment and prevent premature wear. Regular alignment checks can extend the life of the ball screw system and improve its performance.
Installing a ball screw requires careful attention to detail and adherence to best practices. By following the step-by-step guide outlined in this article, you can ensure a successful installation that enhances the performance and longevity of your machinery. Regular maintenance and alignment checks are essential for maintaining the efficiency and durability of the ball screw system. Choosing a reliable Ball Screw And Ball Nut supplier is crucial for obtaining high-quality components that meet your specific needs.
