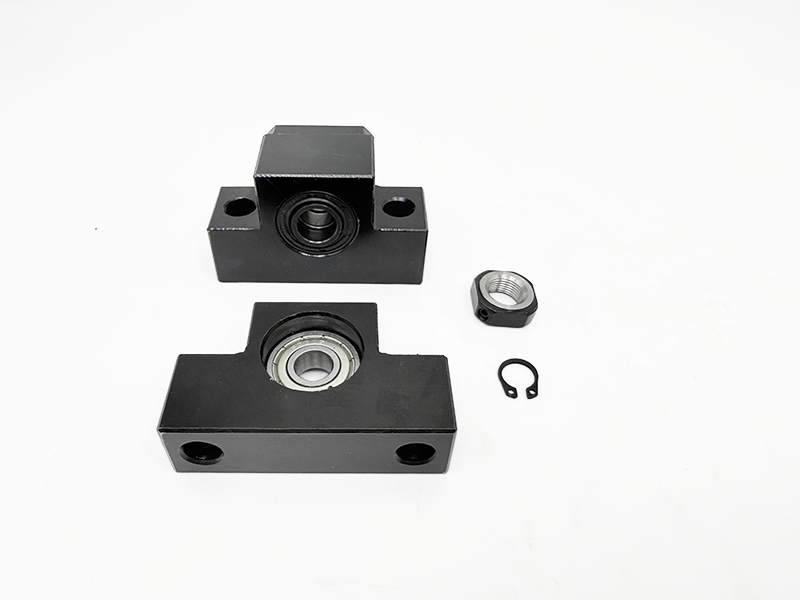

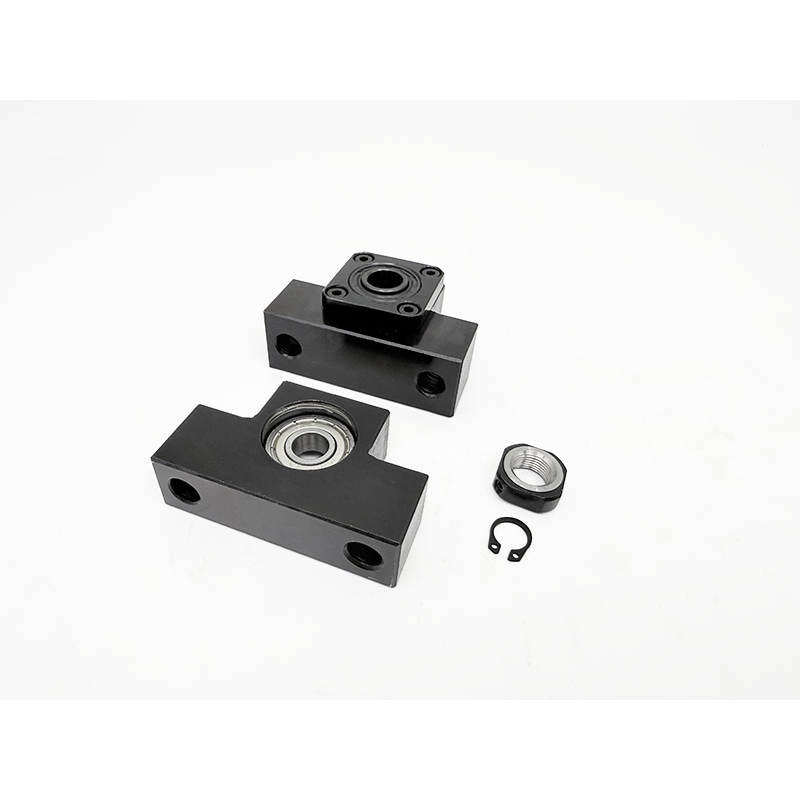

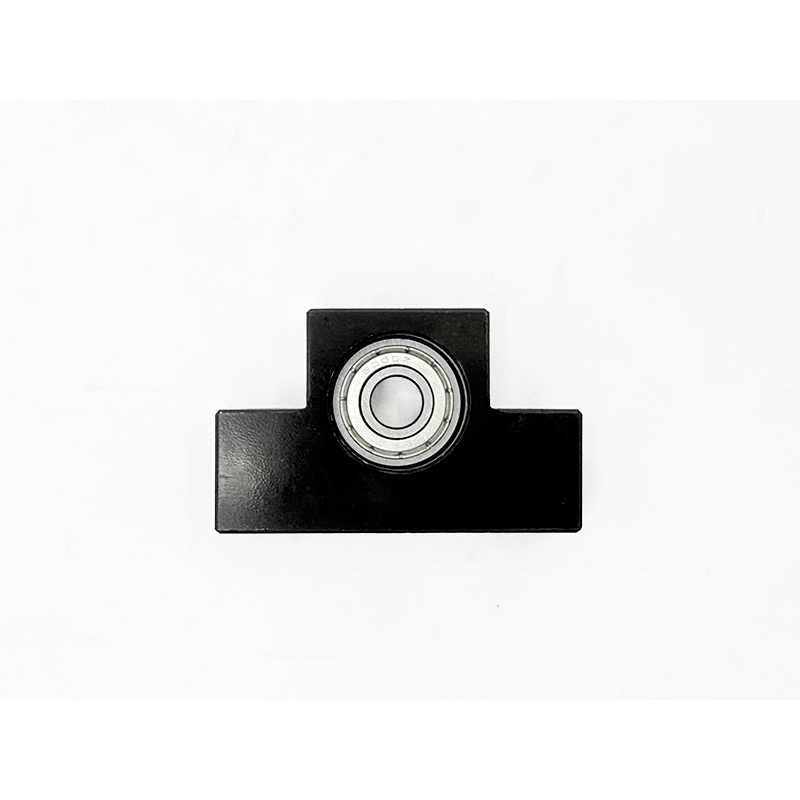

EK/EF Support Seat for Screw Rod Ends

Product Overview

There are ball bearing in the EK support seat. they are mainly used on screw rods.Different models of screw rods have diffrent models to choose from.Also choose the model according to your equipment needs.

 If you can't choose the model ,please contact the customer servicer at any time ,we will online at any time.

 We will give you satisdactory suggestions.At the same time ,we will also guve you good quality and good price,as well as after-sales service.Our MOQ can also make you quite satisfied.

Product Features

Ultra-compact and lightweight design

Smaller outline dimensions and simplified structure, ideal for space‑limited equipment.

Integrated precision bearing housing

High concentricity and rigidity, ensuring stable running accuracy.

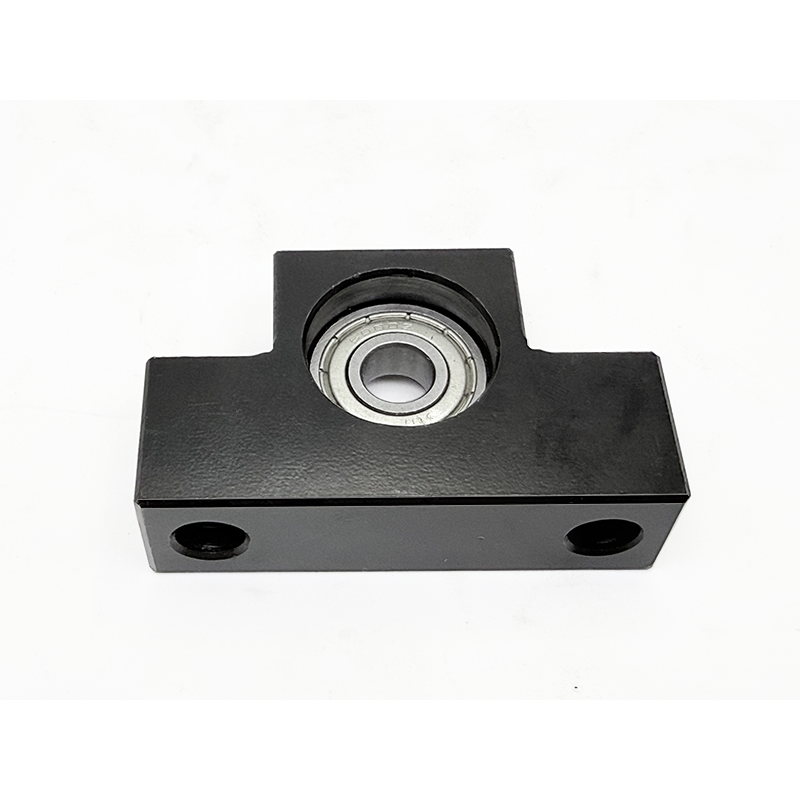

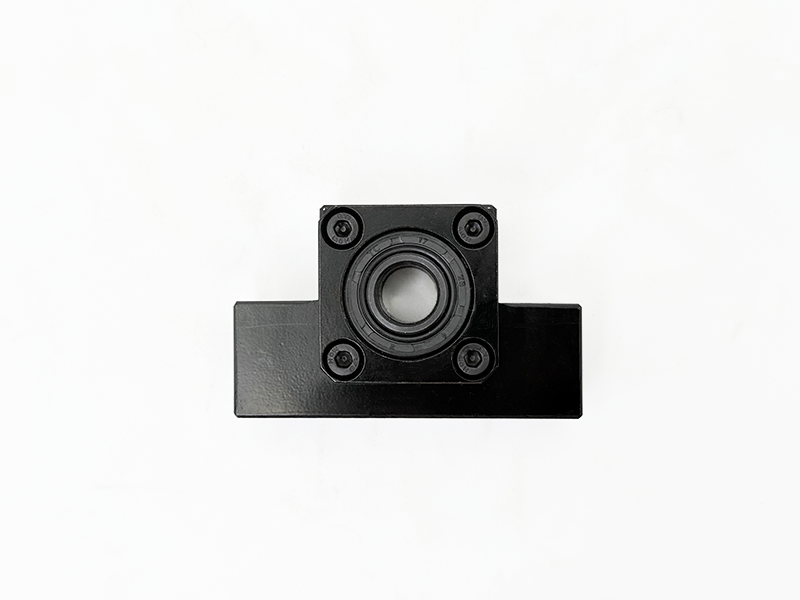

Fixed side (EK) and supported side (EF)

EK serves as the fixed side with high axial rigidity; EF acts as the floating side to compensate for thermal elongation of the screw shaft.

Preloaded high-performance bearings

Built-in precision angular contact ball bearings, enabling high-speed, low‑noise operation.

Standardized dimensions

High interchangeability, easy to install, adjust and replace.

Built-in sealing and lubrication structure

Effectively prevents dust and coolant contamination, ensuring long service life.

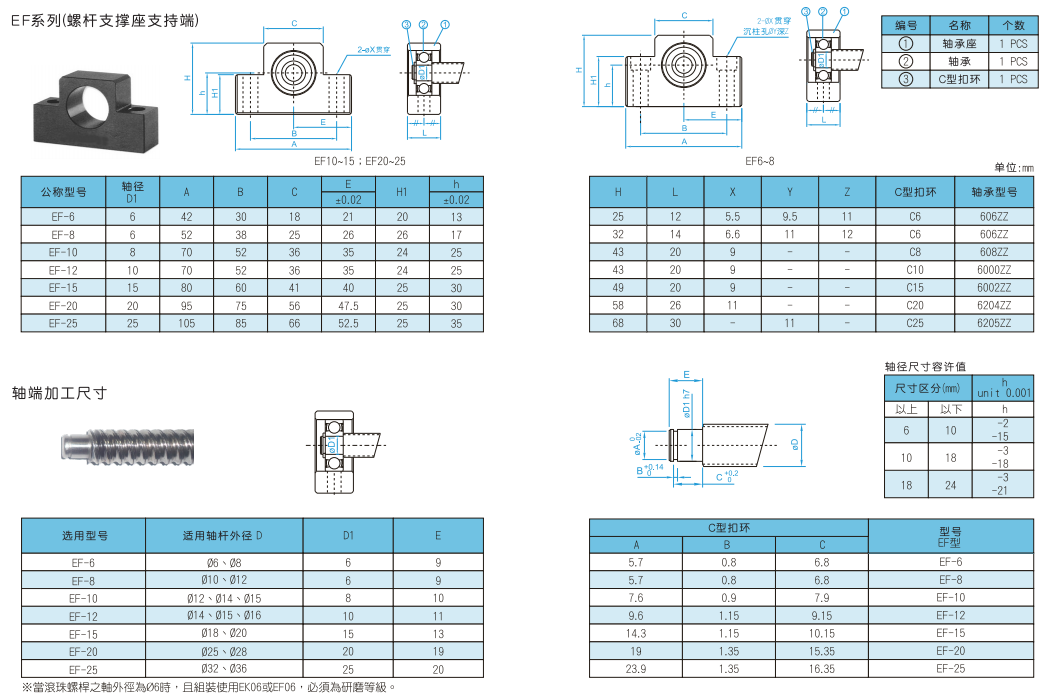

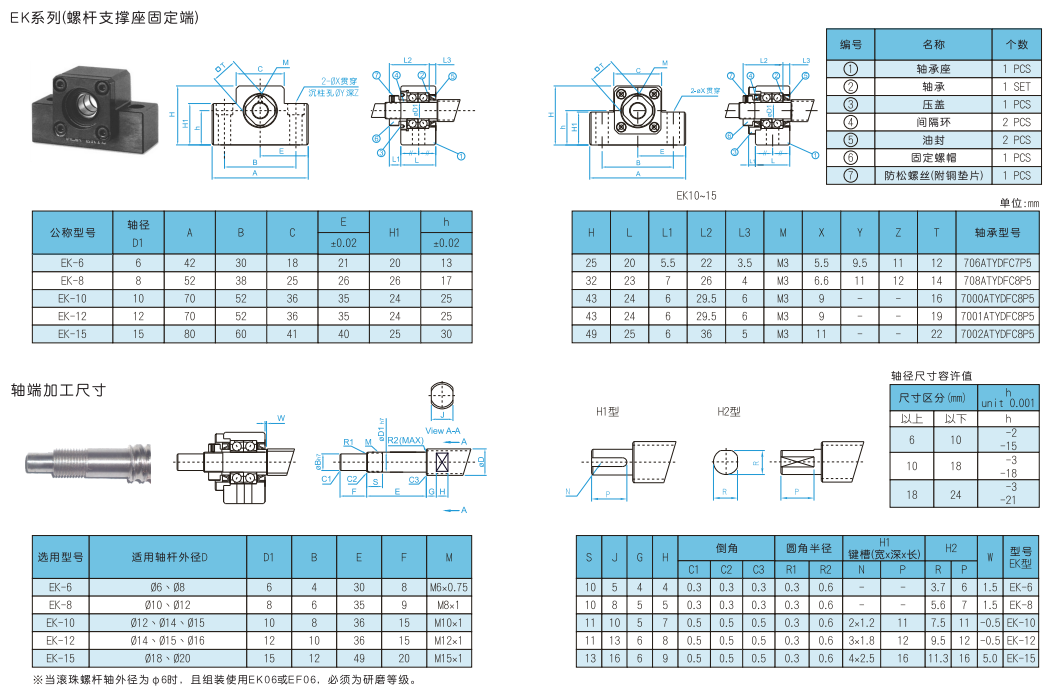

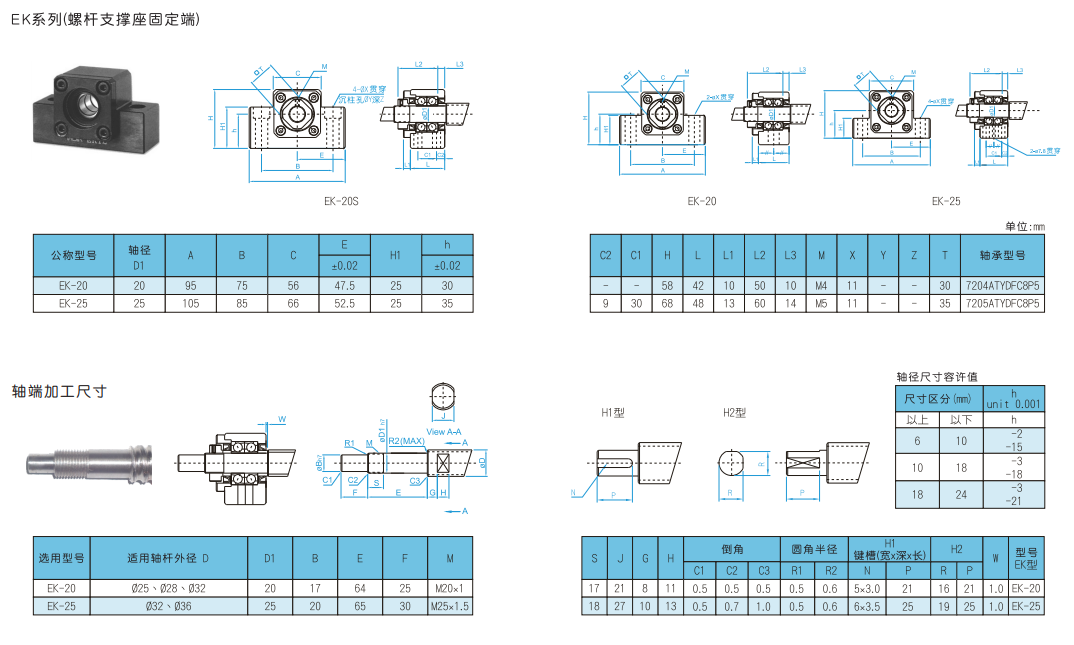

Technical Specifications

Core Advantages

1. Space-saving compact structure

Perfect for small automation devices, precision instruments, and compact modules.

2. High rigidity and high precision

Low runout and stable positioning performance, improving transmission accuracy.

3. Easy installation and high compatibility

Ready to use without complex adjustment, widely matched with general ball screws.

4. Suitable for high-speed operation

Low friction, low vibration, and low noise under high-speed rotation.

5. Thermal elongation compensation

The floating support (EF) absorbs thermal expansion, protecting the ball screw.

6. High reliability and long service life

Good sealing performance reduces wear and extends maintenance intervals.

Typical Applications

• Small CNC machines

• Precision testing instruments

• 3D printers, laser machines

• Semiconductor and electronic processing equipment

• Small automation modules and robots

• Medical devices and office automation machinery

Difference from Other Support Units

FAQ

Q1: What is the difference between EK and EF?
EK is the fixed side with preloaded angular contact bearings, while EF is the floating side allowing axial movement.

Q2: Are these units suitable for high-speed applications?
Yes, they are designed for high-speed and high-precision motion systems.

Q3: Do they require adjustment during installation?
No, they are pre-assembled for easy installation.

Q4: Can I customize the specifications?
Yes, we offer customization based on your requirements.
