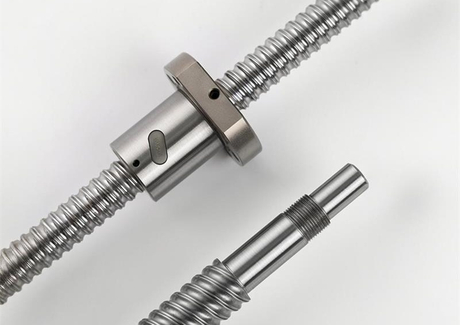

Ball nuts are a crucial component in precision linear motion systems, widely used in CNC machinery, robotics, automation, and industrial equipment. Their primary function is to convert rotational motion into linear motion with high efficiency, minimal friction, and precise control. One of the most critical aspects affecting the performance of a ball nut system is preload. Proper preload management can significantly influence accuracy, rigidity, load capacity, and overall system performance.
This comprehensive guide examines how preload affects ball nut performance and accuracy, the types of preload, design considerations, material choices, maintenance practices, and practical implications for industrial machinery. By understanding preload effects, engineers and manufacturers can optimize their systems for precision, efficiency, and longevity.
Preload refers to the intentional application of axial load within a ball nut assembly to eliminate backlash and improve stiffness. In a ball screw system, backlash—the small movement between the screw and nut when reversing direction—can compromise precision. Preloading maintains consistent contact between the balls and threads, ensuring smoother operation and higher accuracy.
Eliminate Backlash: Reduces free play in the system for precise positioning.
Increase Rigidity: Enhances the stiffness of the linear motion assembly, minimizing deflection under load.
Distribute Load Uniformly: Improves load transfer across the balls and nut threads, reducing localized stress.
Enhance Dynamic Performance: Prevents vibrations and improves response during rapid acceleration or deceleration.
Without proper preload, a ball nut system may experience decreased precision, uneven wear, or instability during operation.
There are several methods used to apply preload to ball nuts, each offering distinct advantages depending on application requirements:
Single-nut preload involves tightening a single nut to create internal tension that maintains constant ball contact. This method is simple, reduces backlash moderately, and is suitable for light- to medium-duty applications.
Double-nut preload uses two nuts pressed against each other. By adjusting the spacing between the nuts, designers can achieve nearly zero backlash. This method increases rigidity and load capacity, making it ideal for heavy-duty, high-precision systems.
Spring or elastic preloading applies continuous force to the balls via compression elements. This design compensates for wear over time, maintains consistent preload, and ensures performance stability under dynamic conditions.
Some specialized systems use cantilevered preloading, where small angles of force are applied to reduce vibration and improve smooth motion. This approach is often used in high-speed linear motion systems where dynamic response is critical.
Accuracy in linear motion systems is largely determined by the ability of the ball nut to maintain consistent contact and motion under load. Preload impacts accuracy in several ways:
Backlash introduces small positional errors when the direction of motion changes. By preloading the balls, the nut maintains constant contact with the screw threads, virtually eliminating backlash and improving repeatability.
Preloaded ball nuts increase system rigidity, which reduces elastic deflection under load. A stiffer assembly translates to higher positional accuracy, especially important in CNC machining and high-precision robotics.
Preload helps mitigate the effects of thermal expansion in high-speed or high-load applications. By maintaining consistent contact, the system can tolerate minor dimensional changes without compromising accuracy.
Over time, ball nuts experience wear on threads and rolling elements. Preloading ensures continuous contact, which minimizes the effects of wear and preserves long-term accuracy.
Load capacity refers to the maximum axial load a ball nut can support without permanent deformation or failure. Preload affects both static and dynamic load capacity:
Static Load Capacity: Preloaded nuts distribute the axial load more evenly across the balls and threads, reducing localized stress and enhancing durability.
Dynamic Load Capacity: Preload increases stiffness, allowing the system to handle dynamic forces such as acceleration, deceleration, and vibration without losing stability.
Properly designed preload ensures that the ball nut can operate safely under both light and heavy loads while maintaining accuracy.
Larger or more numerous balls increase contact points, improving load distribution and stiffness. Preload design must consider the number of balls relative to system requirements.

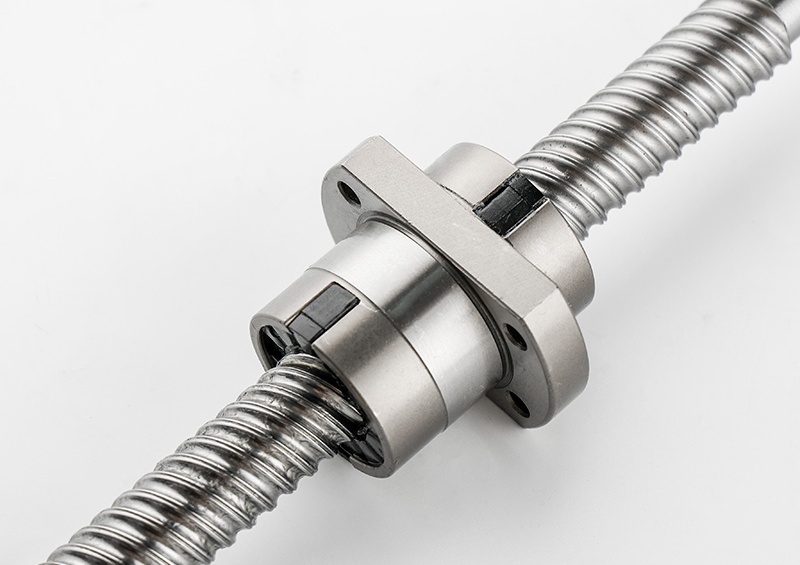

A rigid nut body resists deformation under preload, ensuring that applied forces maintain consistent contact. Flanged designs often improve rigidity, especially in high-load applications.
Precise thread profiles ensure that preload forces are evenly transmitted to all balls. Optimized thread angles reduce localized stress and friction, enhancing efficiency.
Materials affect friction, wear, and thermal expansion. Common choices include:
Material / Feature | Key Characteristics | Main Benefits | Typical Application |
Hardened Steel | Durable, high load capacity, resistant to wear | Provides strength and long service life under heavy loads | Heavy-duty and high-load ball nut systems |
Stainless Steel | Corrosion-resistant | Performs well in wet, humid, or chemical environments | Ball nuts used in corrosive or moisture-prone conditions |
Ceramic Balls | Lightweight, low friction, wear-resistant | Reduce weight, friction, and wear, especially at high speeds | High-speed and high-precision applications |
Polymer Coatings | Improve surface smoothness | Reduce lubrication needs and lower maintenance requirements | Systems requiring smoother motion and reduced upkeep |
Material selection is crucial to maintain preload effectiveness under different operational conditions.
Preloading increases contact forces, which can generate additional friction. Proper lubrication is essential:
Reduces rolling friction and heat generation.
Prevents premature wear of balls and threads.
Maintains consistent preload over extended use.
Modern ball nuts may include self-lubricating coatings or integrated grease channels to reduce maintenance while ensuring preload stability.
Preloaded ball nuts are widely used in industries requiring high precision, high load capacity, and consistent performance:
CNC Machining: Ensures repeatable positioning for milling, turning, and drilling operations.
Robotic Systems: Provides precise motion control in multi-axis robotic arms.
Aerospace Equipment: Maintains stability under dynamic loads in manufacturing and testing applications.
Medical Devices: Supports accurate motion in imaging systems, lab automation, and surgical tools.
Industrial Automation: Critical in high-speed assembly lines, packaging, and pick-and-place systems.
Preload selection must be tailored to the specific application to achieve optimal performance.
Proper maintenance ensures that preload is effective and system accuracy is preserved:
Regular Lubrication: Apply appropriate grease or oil at recommended intervals.
Inspection for Wear: Monitor threads, balls, and nut body for pitting or deformation.
Alignment Checks: Misalignment reduces preload effectiveness and can accelerate wear.
Cleaning: Remove debris and contaminants to maintain smooth operation.
Monitoring Preload: Some high-performance systems use sensors to ensure preload remains consistent over time.
Flanged designs often simplify alignment and reduce uneven load, easing maintenance.
Preload Eliminates the Need for Lubrication: Incorrect. Preload increases contact force, which can increase friction. Proper lubrication is still essential.
More Preload is Always Better: Excessive preload increases wear, friction, and motor torque requirements. Preload must be optimized for application requirements.
Preload Only Improves Accuracy: While accuracy improves, preload also affects load capacity, rigidity, and system stability.
All Ball Nuts Can Handle Preload Equally: Material, design, and nut type determine how preload influences performance.
Understanding these misconceptions ensures that engineers select and implement preload correctly.
Recent advances improve the effectiveness of preloaded ball nuts:
Hybrid Ceramic Balls: Reduce weight, wear, and friction, enhancing performance under preload.
Low-Friction Coatings: Maintain smooth motion and reduce torque requirements.
Integrated Monitoring Sensors: Allow predictive maintenance by tracking preload, temperature, and load.
Optimized Thread Geometry: Increases stiffness, load capacity, and efficiency.
These innovations enable high-precision systems to operate reliably in demanding environments.
For manufacturers and industrial engineers, sourcing high-quality materials is essential. PRIO specializes in premium polymers and alloys suitable for preloaded ball nuts. Using high-performance materials ensures:
Consistent preload over time.
High load capacity and efficiency.
Reduced maintenance and longer component lifespan.
Enhanced precision for demanding applications.
Partnering with reputable suppliers allows businesses to optimize linear motion systems while maintaining productivity and reliability.
Preload significantly affects ball nut accuracy and performance in precision linear motion systems. Proper preload reduces backlash, increases rigidity, improves load capacity, and maintains consistent accuracy over the life of the system. Understanding types of preload, material choices, lubrication, and design considerations is essential for engineers, designers, and manufacturers aiming for high-performance linear motion solutions.
For industrial applications, manufacturers, and engineers seeking high-quality components and materials for preloaded ball nuts, PRIO offers premium solutions that enhance durability, precision, and efficiency in demanding machinery environments.
Q: What is the purpose of preload in ball nuts?
A: Preload eliminates backlash, increases stiffness, and ensures consistent load distribution in precision linear motion systems.
Q: Can excessive preload reduce ball nut lifespan?
A: Yes, excessive preload increases friction and wear, so it must be optimized for each application.
Q: How does preload affect dynamic load capacity?
A: Preloading improves rigidity and stability, allowing the ball nut to handle dynamic forces without losing accuracy.
Q: Are flanged ball nuts better for preload applications?
A: Flanged nuts provide more secure mounting and distribute load evenly, enhancing the effectiveness of preload.
