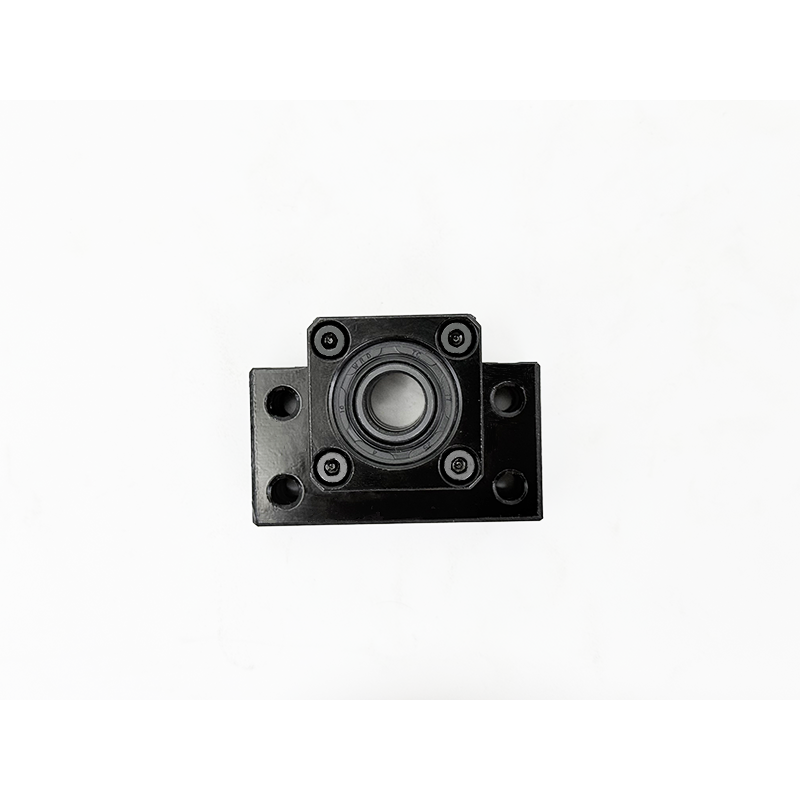

Screw Rod End BK/BF Series Support Seat

Product Overview

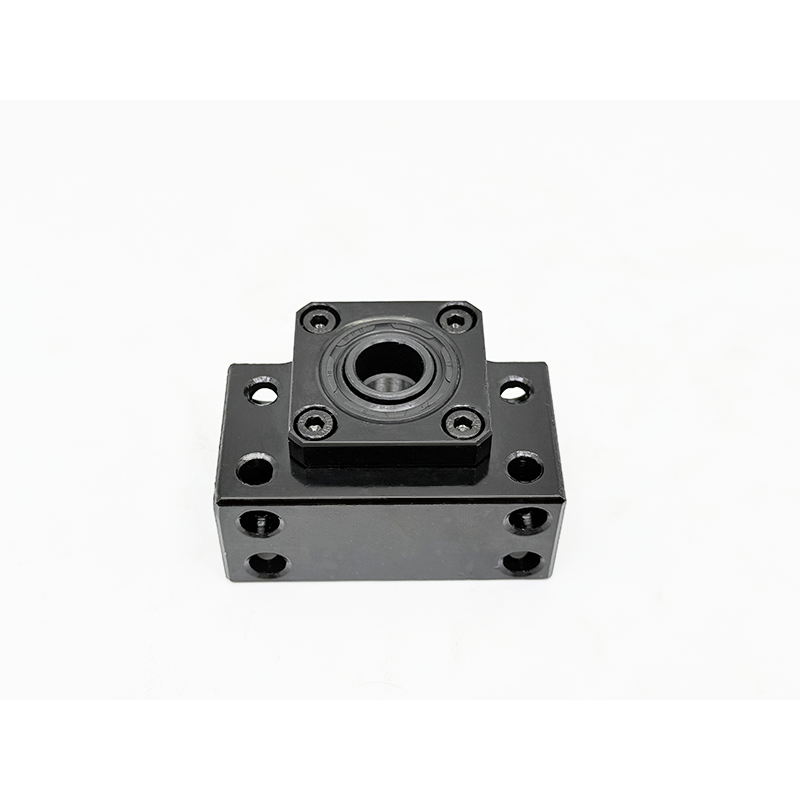

There is a ball bearing in the BK support seat.It is mainly used to support the end of the screw.

You can choose the model you need according to your equipment needs.

If you cann't make a choice on the model , you can contact customer service at any time .we will be online at any time.

We will give you the most safisfactory answer.Of course ,we will also give you the best quality and best price ,as well as the best after--sales service. Our MOQ will also satisfy you.

Product Features

Standardized integrated structure

Precisely machined mounting base and bearing housing for easy installation and high positioning accuracy.

High-performance bearing configuration

Equipped with precision angular contact ball bearings, capable of withstanding combined radial and axial loads.

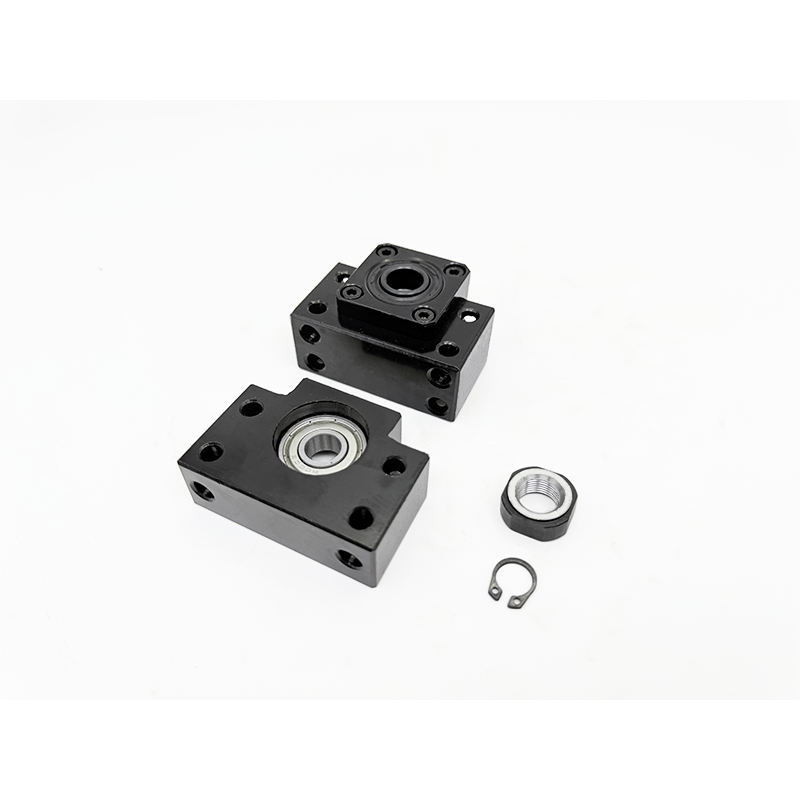

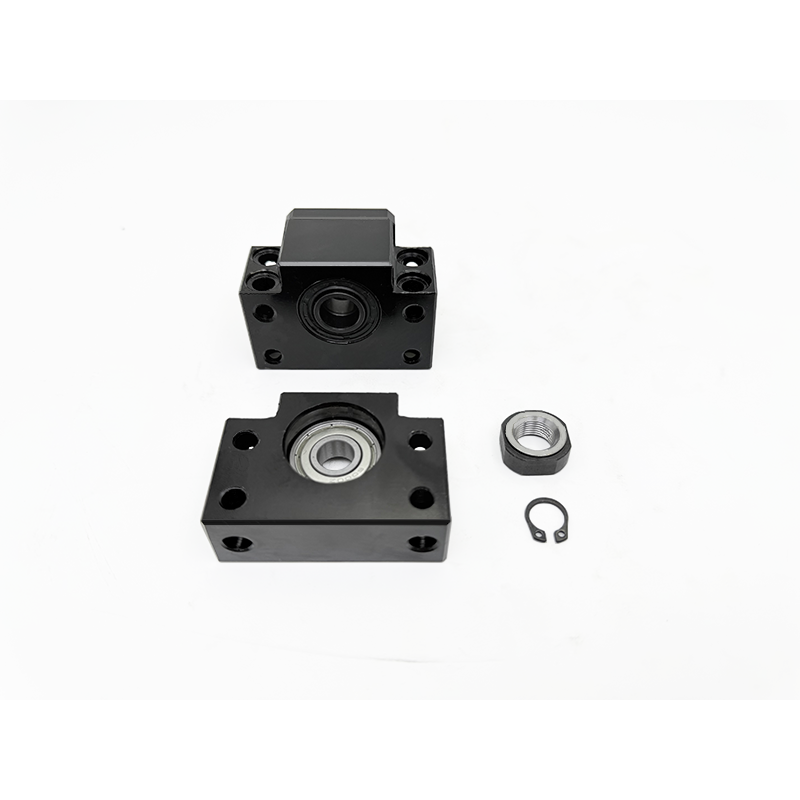

Fixed (BK) and supported (BF) types

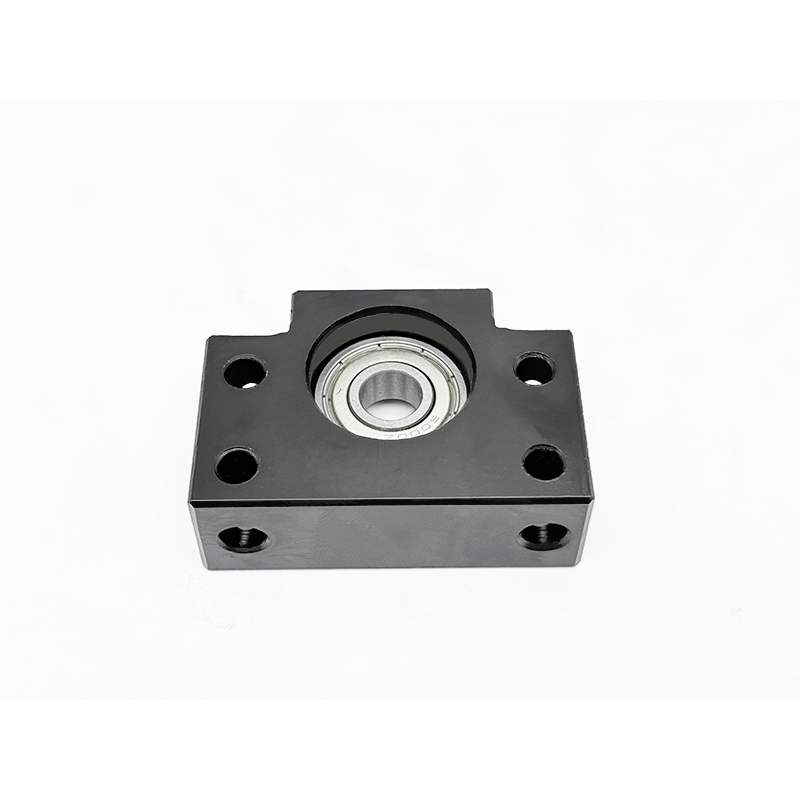

BK type acts as the fixed side with high rigidity; BF type acts as the floating side to compensate for thermal elongation of the screw.

High precision and stability

Low runout, high rigidity, and stable rotation performance to improve transmission accuracy.

Simple structure and easy maintenance

Compact design, standard dimensions, interchangeable with common series on the market.

Lubrication and dustproof design

Built-in sealing structure to prevent dust and lubricant leakage, ensuring long service life.

Core Advantages

1. High rigidity & high load capacity

Effectively supports the ball screw, reduces deflection, and improves overall system stability.

2. Accurate positioning & low noise

High-precision assembly reduces vibration and noise during high-speed operation.

3. Easy installation & high compatibility

Standardized dimensions allow direct mounting without complex adjustment, widely compatible with various ball screws.

4. Thermal elongation compensation

The BF floating support design absorbs thermal expansion, protecting the screw and improving accuracy.

5. Long service life & high reliability

Good sealing and lubrication performance reduce wear and extend maintenance intervals.

6. Cost-effective

Stable performance, standardized design, and easy replacement effectively reduce equipment cost.

Typical Applications

• CNC machine tools

• Automation machinery and robots

• Precision conveying and positioning systems

• Packaging, printing, and textile machinery

• Semiconductor and precision testing equipment

• Woodworking machinery and laser processing equipment

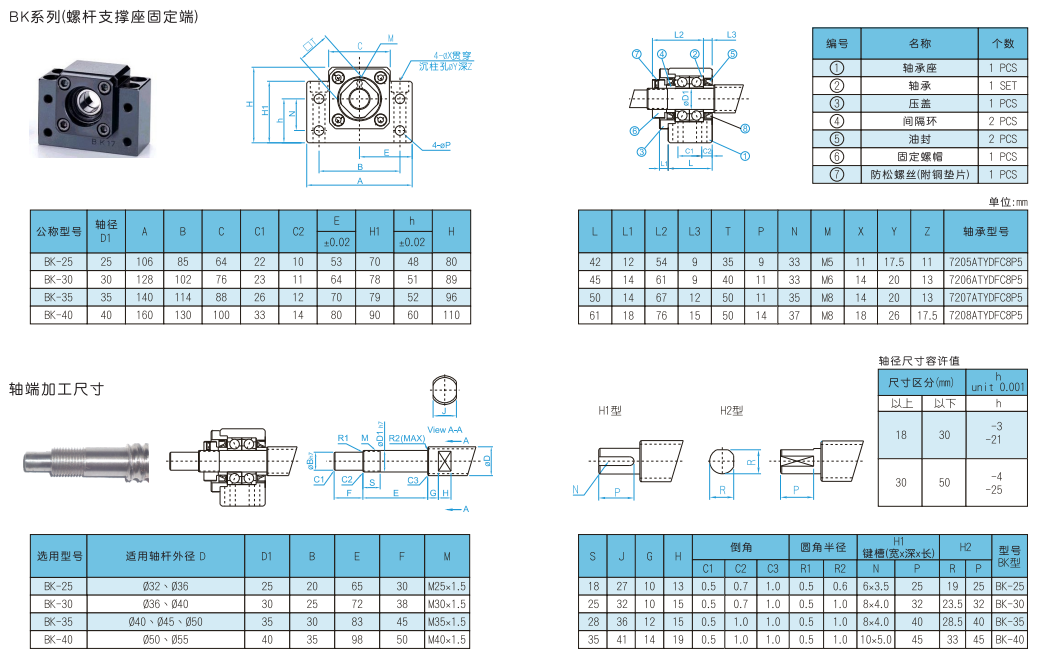

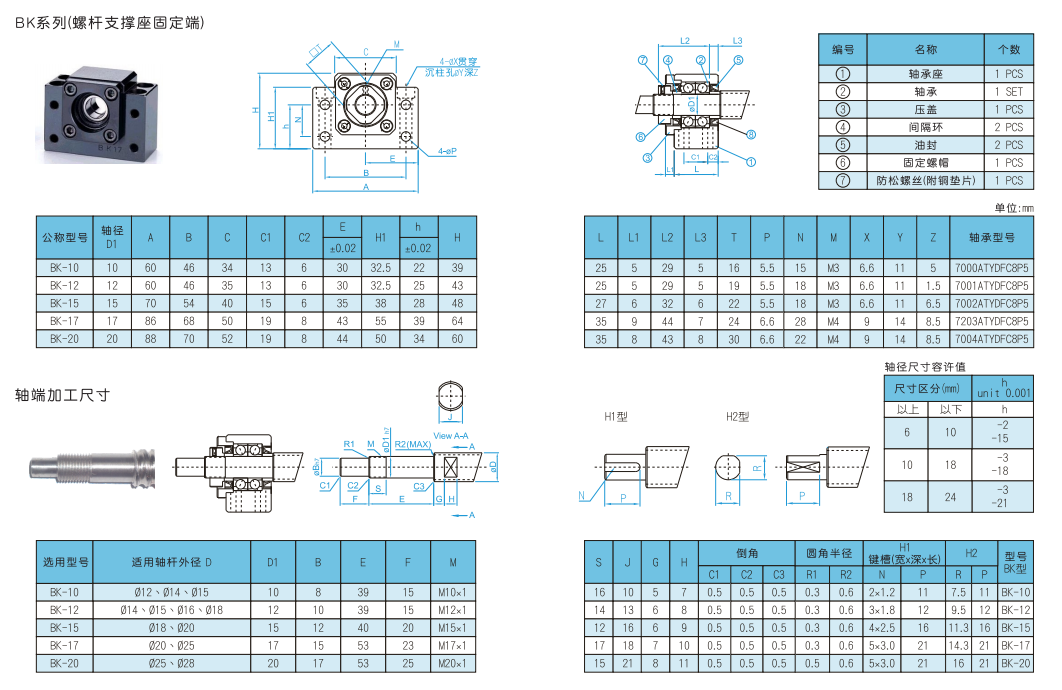

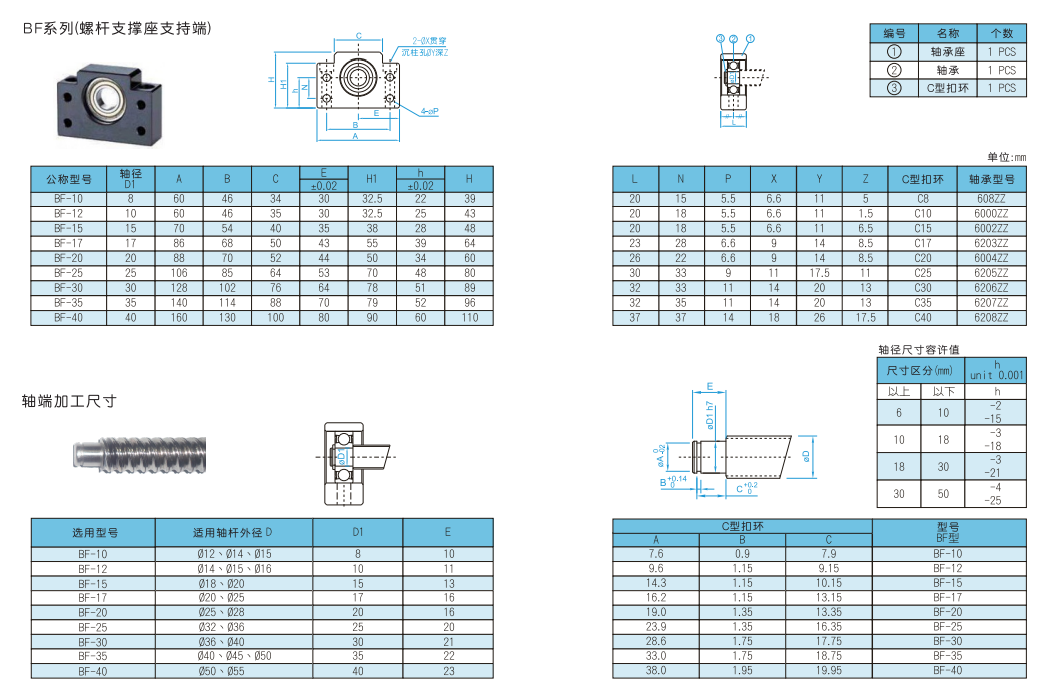

Technical Specifications

Why Choose Us

Deep Industry Expertise: Years of experience in motion system components.

Strict Quality Control: Each unit is tested for preload, rotation smoothness, and durability.

Complete Product Range: Full sizes from BK10 to BK40 available.

Customization Support: Tailored solutions for unique machine requirements.

Reliable Delivery: Efficient production and global logistics network.

FAQ

Q1: What is the difference between BK and BF units?
BK is the fixed side with preloaded bearings, while BF is the floating side allowing axial movement.

Q2: Are these units pre-assembled?
Yes, they are fully assembled and ready for installation.

Q3: Can they handle high-speed rotation?
Yes, they are designed for high-speed and high-precision applications.

Q4: Do you offer customization?
Yes, preload, material, and dimensions can be customized.
