Why End Support is Critical for Ball Screws

In the realm of industrial machinery, the significance of End Support cannot be overstated. As a critical component in the functionality of ball screws, end supports play a pivotal role in ensuring precision and durability. This article delves into the reasons why end support is crucial for ball screws, exploring its impact on performance, longevity, and efficiency. By understanding the importance of end support, manufacturers and engineers can make informed decisions that enhance the overall operation of their machinery.

The Role of End Support in Ball Screws

End support is essential in maintaining the alignment and stability of ball screws, which are integral to various industrial applications. The primary function of end support is to provide a stable base that prevents the ball screw from bending or misaligning under load. This stability is crucial for maintaining the precision of the screw's movement, which directly affects the accuracy of the machinery it powers. Without adequate end support, ball screws are susceptible to deflection, leading to increased wear and tear, reduced accuracy, and potential system failures.

Moreover, end supports are designed to accommodate the axial and radial loads exerted on ball screws during operation. By effectively managing these loads, end supports help to minimize vibration and noise, enhancing the overall performance and lifespan of the machinery. The choice of end support unit is therefore critical in ensuring that ball screws operate smoothly and efficiently.

Types of End Support and Their Applications

There are several types of end supports available, each designed to meet specific requirements and applications. The most common types include fixed, floating, and adjustable end supports. Fixed end supports provide a rigid connection that is ideal for applications requiring high precision and stability. Floating end supports, on the other hand, allow for slight axial movement, accommodating thermal expansion and contraction in the ball screw. Adjustable end supports offer the flexibility to fine-tune the alignment and tension of the ball screw, making them suitable for applications where precision adjustments are necessary.

In industrial settings, the choice of end support is often dictated by the specific requirements of the application. For instance, in high-speed CNC machines, precision end support is essential to maintain the accuracy and repeatability of the machining process. Similarly, in heavy-duty applications, durable end support is necessary to withstand the significant loads and stresses involved.

The Impact of End Support on Machinery Performance

The performance of industrial machinery is heavily influenced by the quality and design of its components, with end support being a critical factor. Properly designed and installed end supports can significantly enhance the performance of ball screws by reducing friction and wear, thereby increasing the efficiency and reliability of the machinery. This improvement in performance not only leads to better product quality but also reduces maintenance costs and downtime, providing a competitive advantage in industrial operations.

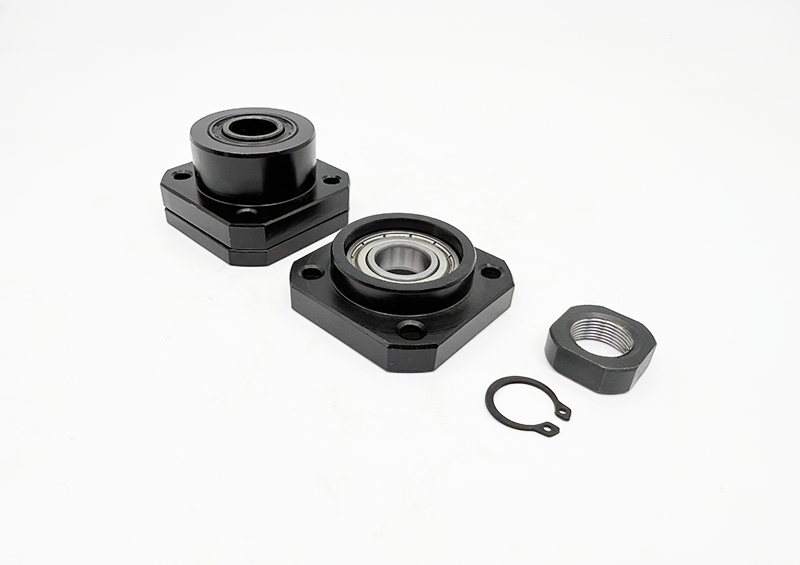

Furthermore, the use of EK/EF End Support Seat can enhance the load-bearing capacity of ball screws, allowing them to handle higher loads without compromising on precision. This capability is particularly beneficial in applications where high-speed and high-load operations are required, such as in automotive manufacturing and aerospace engineering.

Selecting the Right End Support Manufacturer

Choosing the right End Support manufacturer is crucial for ensuring the quality and performance of ball screws. A reputable manufacturer will provide end supports that are designed and tested to meet the highest standards of precision and durability. When selecting a manufacturer, it is important to consider factors such as their experience, reputation, and the range of products they offer. Additionally, manufacturers that provide comprehensive support and customization options can offer significant advantages in meeting specific application requirements.

Manufacturers with a strong focus on innovation and quality assurance are more likely to produce end supports that deliver superior performance and reliability. By partnering with such manufacturers, companies can ensure that their machinery operates at peak efficiency, reducing the risk of failures and extending the lifespan of their equipment.

Conclusion

In conclusion, the importance of Precision Ball Screw End Support in industrial applications cannot be overstated. By providing stability, reducing wear, and enhancing performance, end supports play a vital role in the functionality and longevity of ball screws. As industries continue to demand higher precision and efficiency, the role of end support will only become more critical. By understanding the various types of end supports and their applications, and by selecting the right manufacturer, companies can ensure that their machinery operates at its best, delivering superior performance and reliability.
