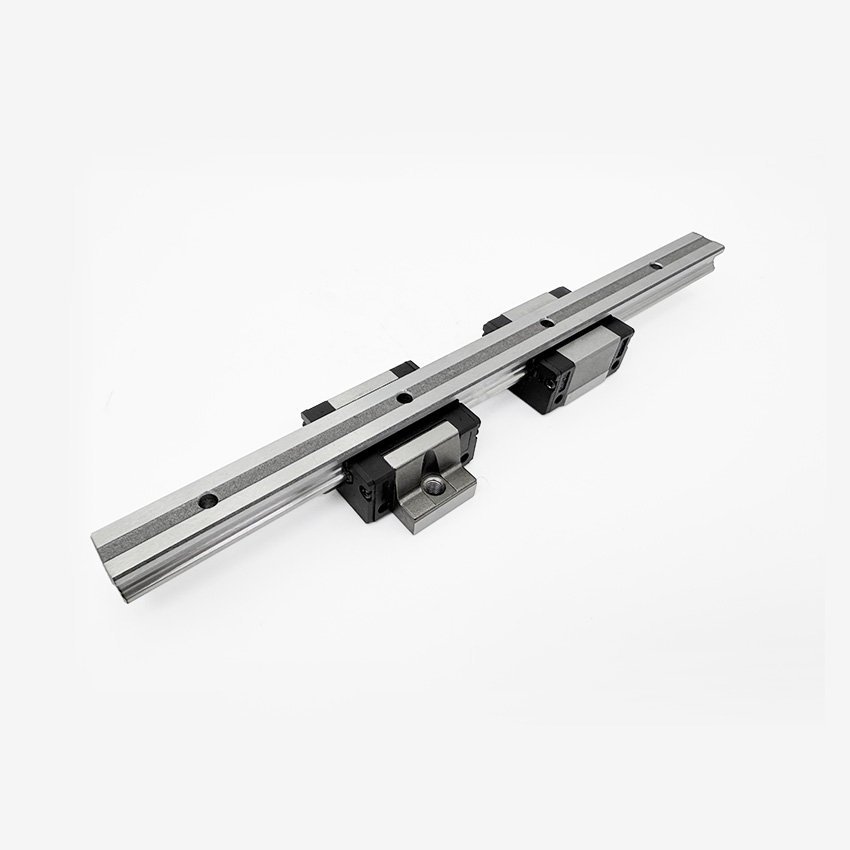

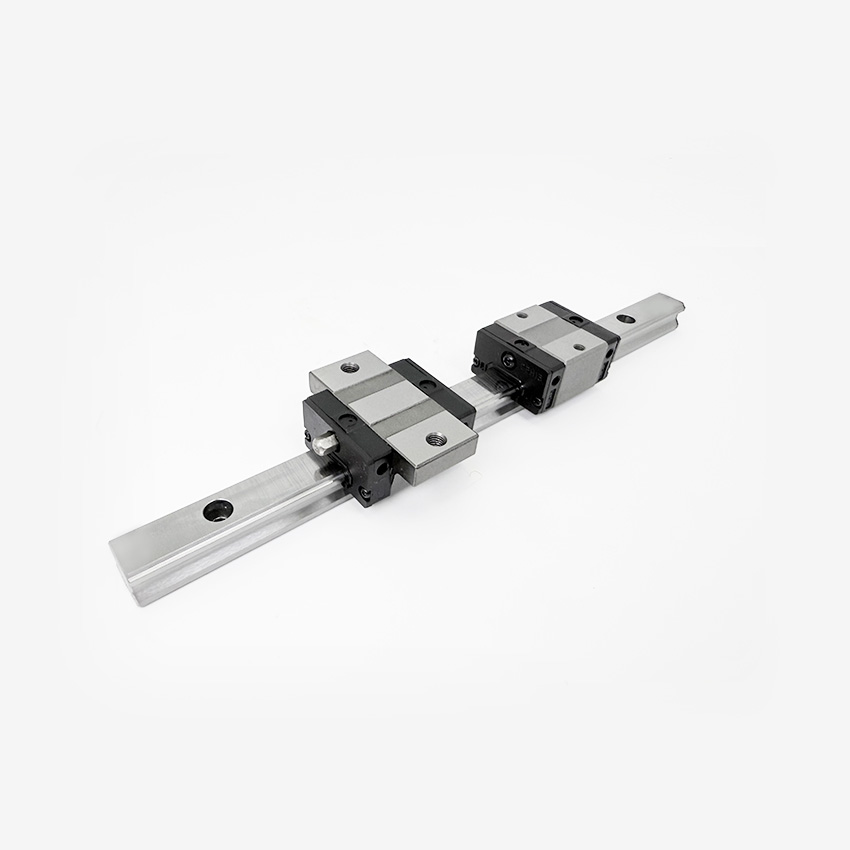

EGW15SC-EGW30SC Two Holes Short Flanged Linear Guide Slider

EGW Short Type Linear Guide Slider – Introduction & Advantages

The EGW Short Series is a compact, short-length linear guide slider designed for applications with limited installation space while maintaining high rigidity and stable performance. It features a wide, low-profile structure and is widely used in small- to medium-sized automation machines.

Product Features

Short-block, space-saving design

Reduced slider length for compact equipment layout, ideal for limited mounting space.

Wide rail, low center of gravity

Provides excellent rigidity, moment resistance, and running stability.

Four-direction equal load capacity

Balanced load performance in radial, reverse-radial, and lateral directions.

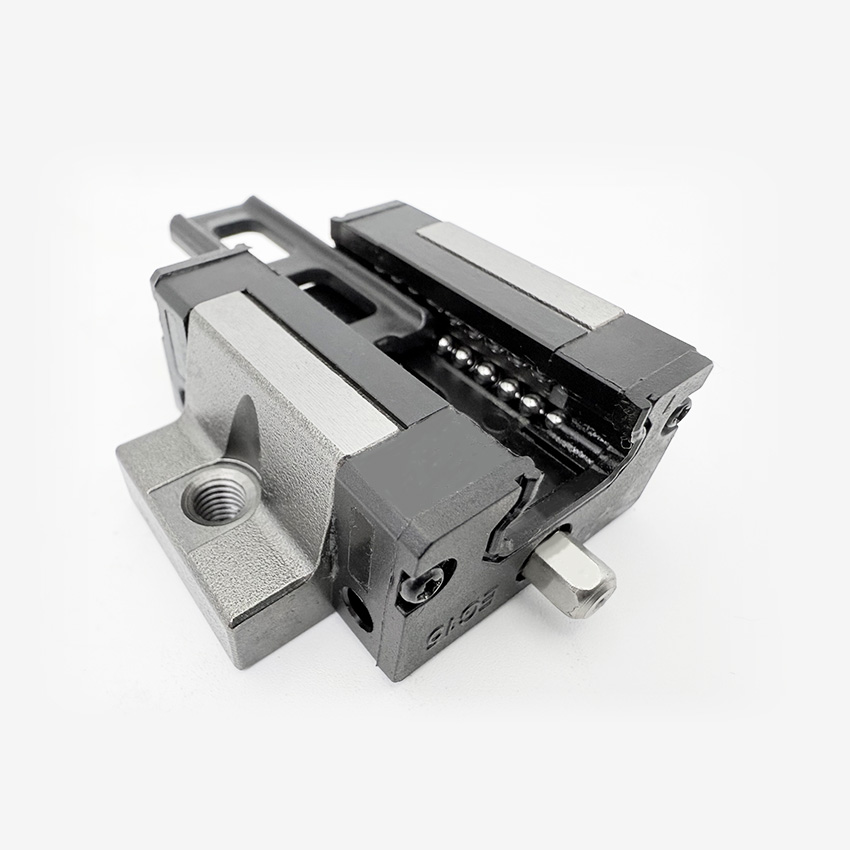

Gothic arch 4-point contact structure

Ensures high rigidity, smooth motion, and high positioning accuracy.

Self-aligning ability

Absorbs minor mounting surface errors for easier installation.

Dustproof and low-friction design

Stable operation, low noise, and long service life.

Product Specifications

Core Advantages

1. Ultra-compact & space-efficient

Perfect for machines with strict space limitations while retaining high performance.

2. Lightweight & low inertia

Improves high-speed response and reduces driving power consumption.

3. High rigidity & stable movement

Wide-rail structure ensures strong anti-overturning and anti-deflection performance.

4. Easy installation & high compatibility

Standard dimensions, interchangeable with general EGW series rails.

5. Cost-effective & versatile

Suitable for most general automation applications with reliable performance.

Typical Applications

• Small automated machinery

• Semiconductor and electronic equipment

• Packaging and printing machines

• Medical instruments

• 3D printers

• Precision testing equipment

FAQ

Q1: What is the advantage of the short block design?
It allows installation in tight spaces while maintaining sufficient stability.

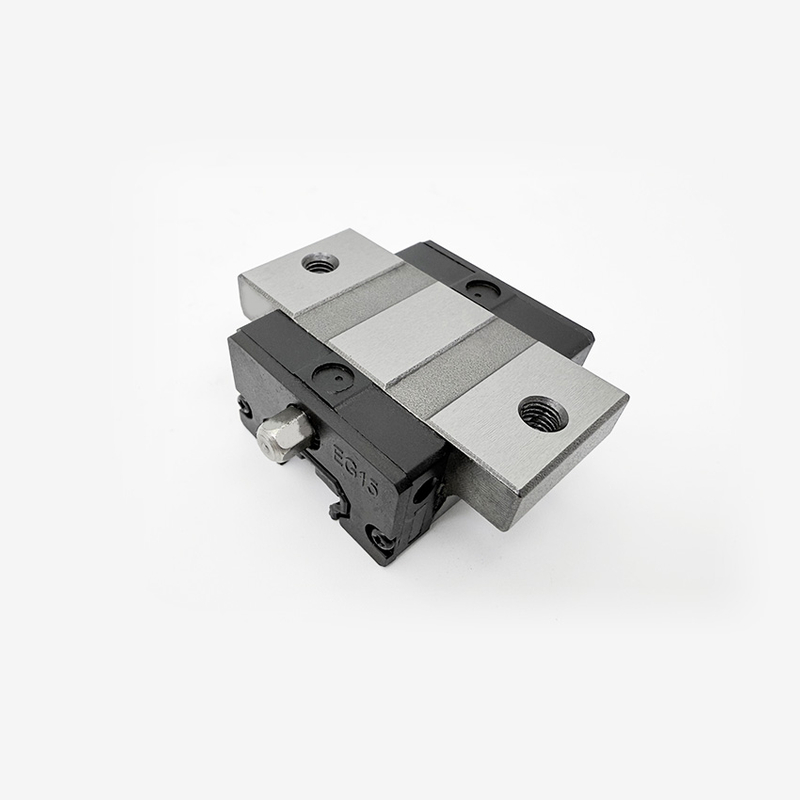

Q2: Is the two-hole flange secure enough?
Yes, it provides reliable mounting for most compact applications.

Q3: Can it handle high-speed motion?
Yes, it is designed for smooth and stable high-speed operation.

Q4: Can I request customization?
Yes, customization options are available.
