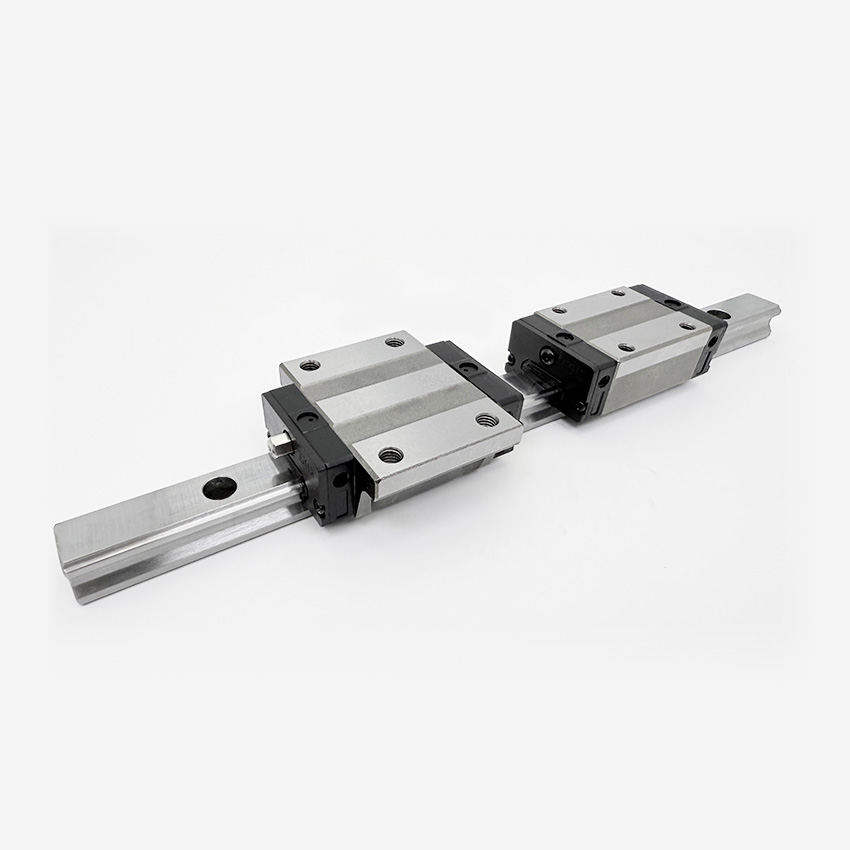

EGH15CA-EGH30CA Square Linear Guide Slider

EGH Series Linear Guide Slider – Introduction & Advantages

The EGH Series is a highly popular, general‑purpose linear guide slider designed for stable performance, easy installation, and wide industrial applicability. It features a standard‑height, wide‑rail structure that balances rigidity, load capacity, and cost efficiency, making it one of the most widely used linear motion solutions.

Product Features

Standard profile, wide rail design

Provides stable support and strong moment resistance, suitable for single‑rail or dual‑rail parallel use.

Four‑direction equal load capacity

Capable of bearing radial, reverse‑radial, and lateral loads equally in all directions.

Gothic arch 4‑point contact structure

Ensures high rigidity, high precision, and stable motion under varying loads.

Self‑aligning capability

Absorbs minor installation surface errors and maintains smooth movement.

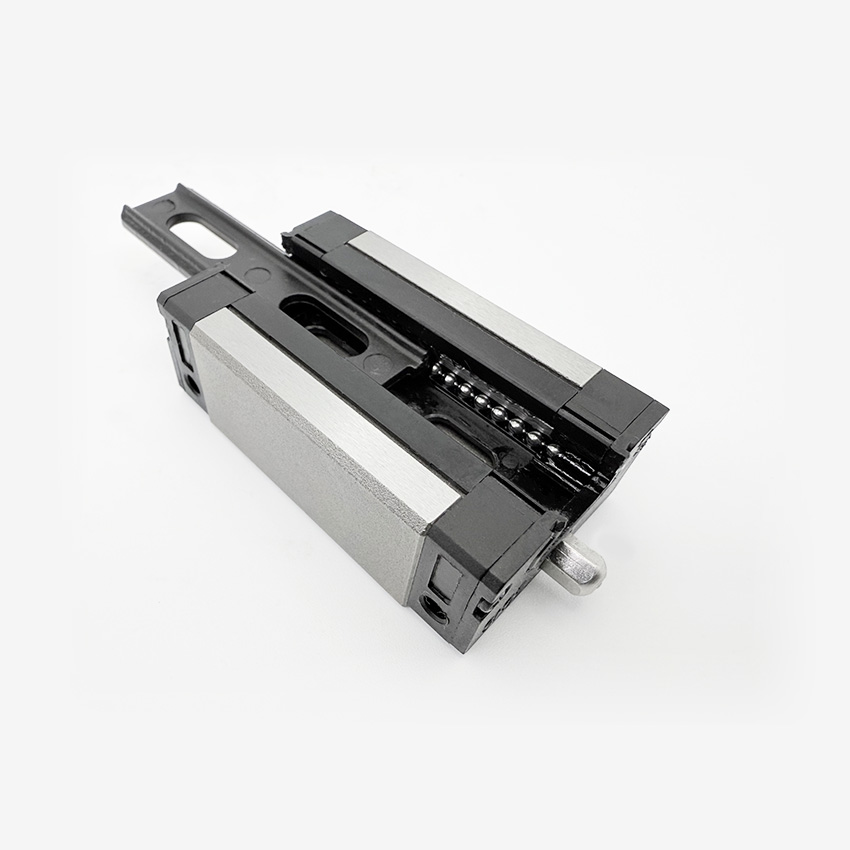

Ball retainer / Anti‑dust design

Prevents ball separation and reduces dust entry, improving service life and maintainability.

Interchangeable design

Rails and sliders can be matched and replaced individually, simplifying management and replacement.

Core Advantages

1. High versatility & wide application

Suitable for most automation equipment, with excellent compatibility and strong adaptability.

2. Outstanding cost‑performance

Balances high rigidity, precision, and durability at a competitive cost.

3. Easy installation & high stability

Strong anti‑error ability during installation, stable operation, and low failure rate.

4. High rigidity & low noise

Stable movement, low vibration, and low noise even under medium‑to‑high speed operation.

5. Long service life & low maintenance

Reliable structure and dust‑proof design extend service life and reduce maintenance frequency.

Typical Applications

• Machine tools and processing equipment

• Automation machinery & robots

• Packaging, printing, and textile machines

• Automotive assembly equipment

• Woodworking machinery

• Precision conveying systems

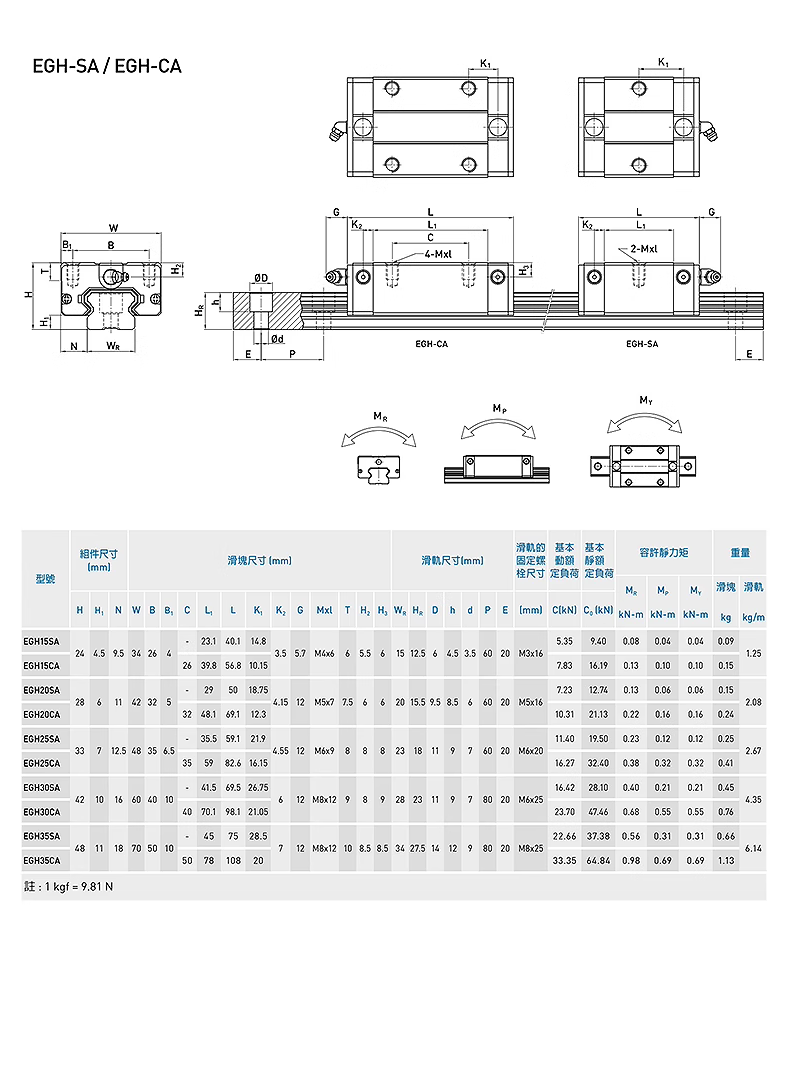

Technical Parameters

FAQ

Q1: Is this suitable for compact equipment?
Yes, the low-profile square design is specifically made for space-limited applications.

Q2: How often should lubrication be applied?
Depending on usage conditions, but generally less frequent due to built-in lubrication design.

Q3: Can it handle high-speed movement?
Yes, it is optimized for high-speed and high-precision applications.

Q4: Are custom sizes available?
Yes, we support customization based on your requirements.
