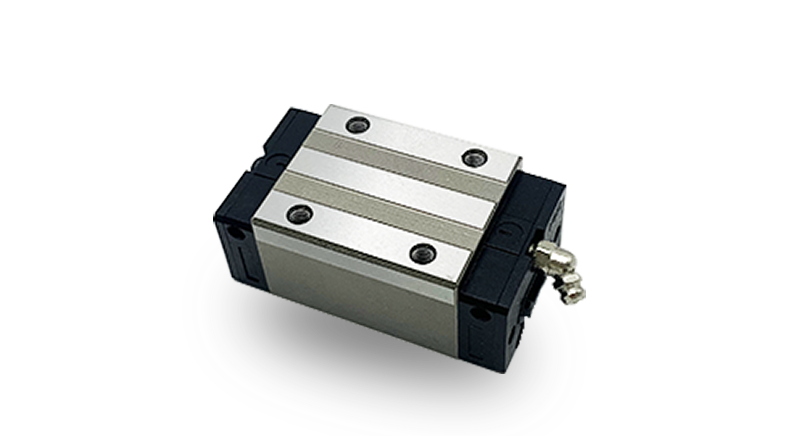

The Heavy-Duty Linear Guide is a robust linear motion system engineered for demanding industrial environments that require high load-bearing performance and long-term operational stability. Designed for machinery that operates under intense stress—such as CNC equipment, logistics conveyors, and automation arms—this linear guide combines strength, durability, and precision. Its structural integrity and corrosion-resistant materials make it a reliable choice for heavy-duty linear positioning.
The guide rail is manufactured with an enlarged cross-section and deep groove raceways, which increase structural rigidity. This enables the guide to resist deformation under large static or dynamic loads.
Static Load Capacity: Up to 80,000 N (varies by size and series)
Dynamic Load Rating: Engineered for continuous operation with forces exceeding 60,000 N
These specifications allow the guide to support heavy industrial equipment without compromising accuracy.
Constructed from hardened high-carbon steel or alloy steel (SCM440, SUJ2)
Treated with anti-corrosive coatings (chrome-plated or black oxide) for harsh environments such as machining centers or outdoor automatio
Optional stainless steel available for high-humidity or medical environments
Employs multiple rows of large-diameter ball bearings or rollers to distribute force evenly. This reduces contact stress and enhances service life even in continuous heavy-duty applications.
The guide is designed to withstand combined loading, including vertical, horizontal, and moment forces (Mx, My, Mz), making it ideal for cantilever or gantry-style setups.
Superior Load Handling
Enables precise motion control in equipment subject to extreme mechanical stress or payloads.
Smooth Linear Motion
Precision machining and preloaded bearing assemblies ensure consistent, low-friction movement—even under heavy vertical or torsional forces.
Long Maintenance Cycles
Lubrication intervals can reach up to 10,000 km of travel with integrated grease reservoirs and sealing systems, reducing downtime and operational costs.
Corrosion and Shock Resistance
Suitable for environments with coolant spray, dust, or sudden load shocks (e.g., metal forming and aerospace equipment).
| Industry | Example Equipment |
|---|---|
| CNC Machining | Gantry mills, vertical machining centers, boring machines |
| Automation Systems | Heavy-load robotic arms, palletizing machines |
| Logistics & Conveyors | High-capacity sorting systems, warehouse shuttles |
| Medical Imaging | Heavy-bed MRI or CT platforms |
| Aerospace & Defense | Satellite assembly tables, missile launch test rigs |
Wide-type rail for increased moment load support
Flanged or square-type carriage for flexible mounting
Dust-proof end caps, scraper seals for abrasive environments
Interchangeable guide/carriage series for modular integration
The Heavy-Duty Linear Guide is purpose-built for performance, safety, and longevity in load-intensive industrial tasks. Whether you're designing CNC systems or automated assembly platforms, this guide offers unmatched mechanical strength, resistance to environmental stressors, and long-term motion accuracy. If your machinery demands uncompromising rigidity and reliability—this is the linear guide for the job.
