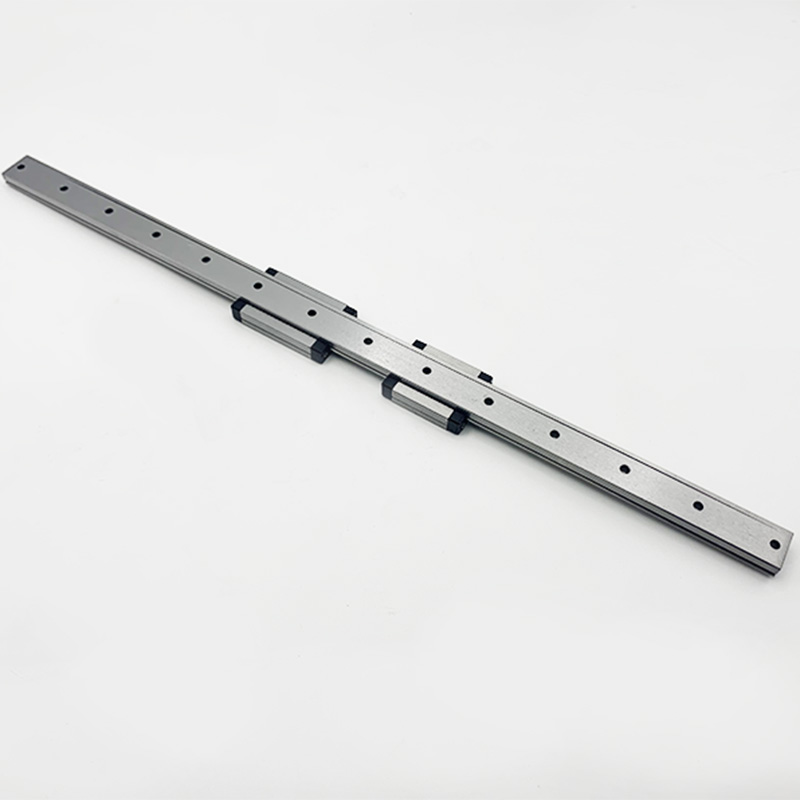

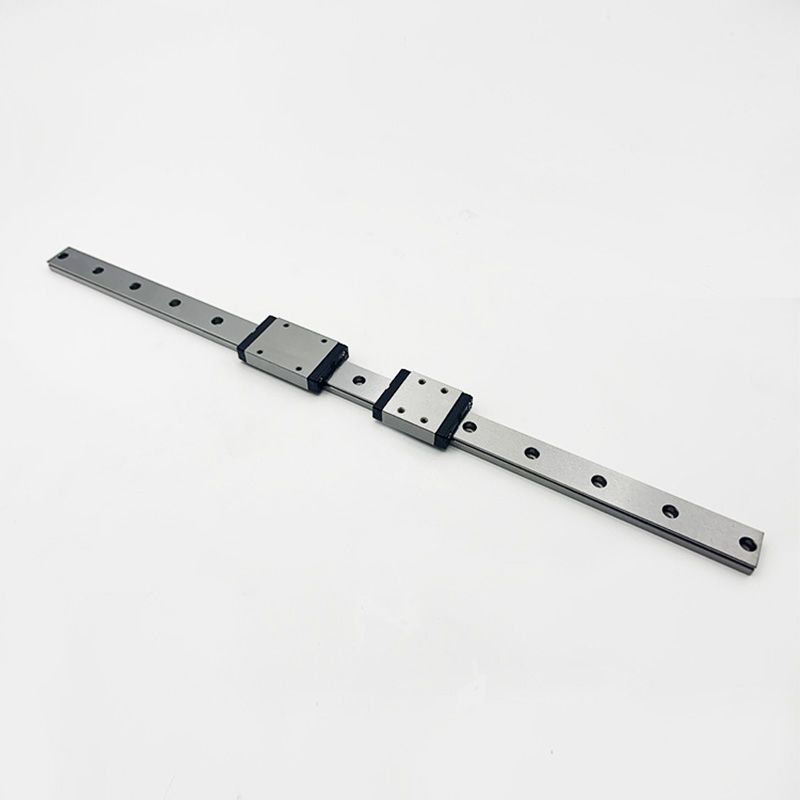

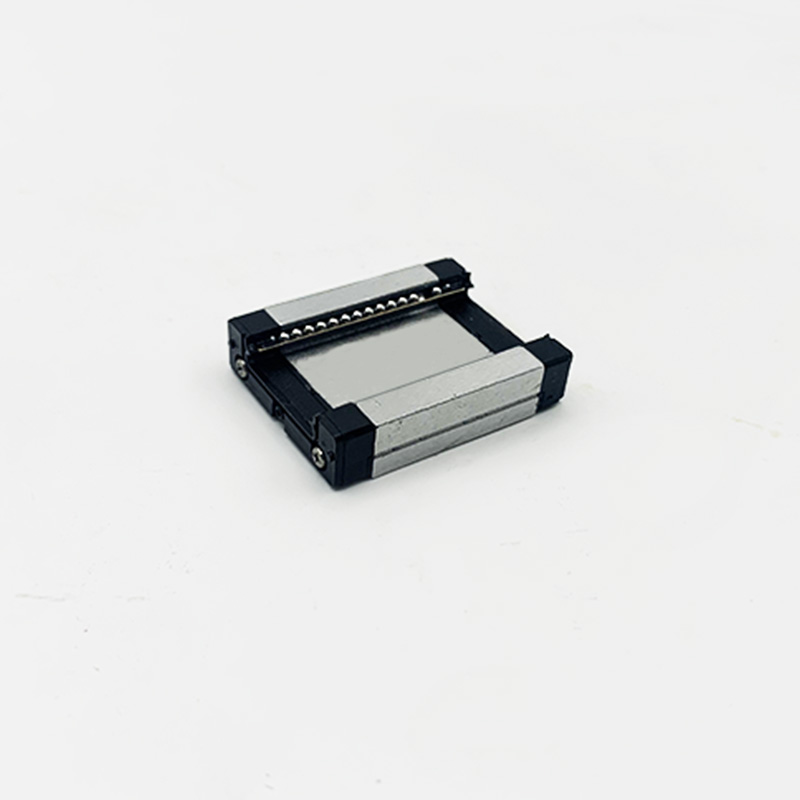

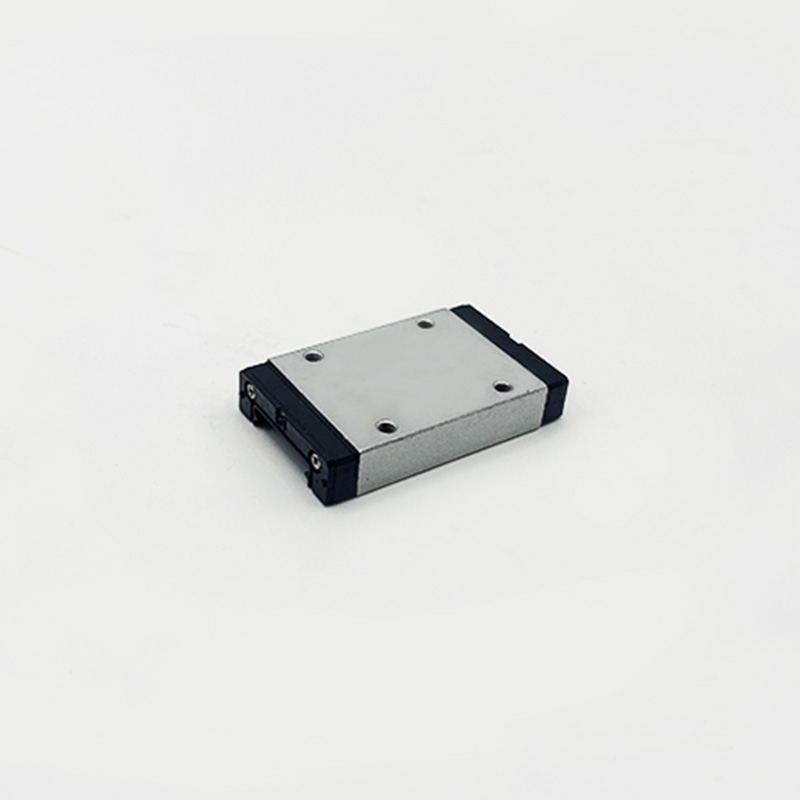

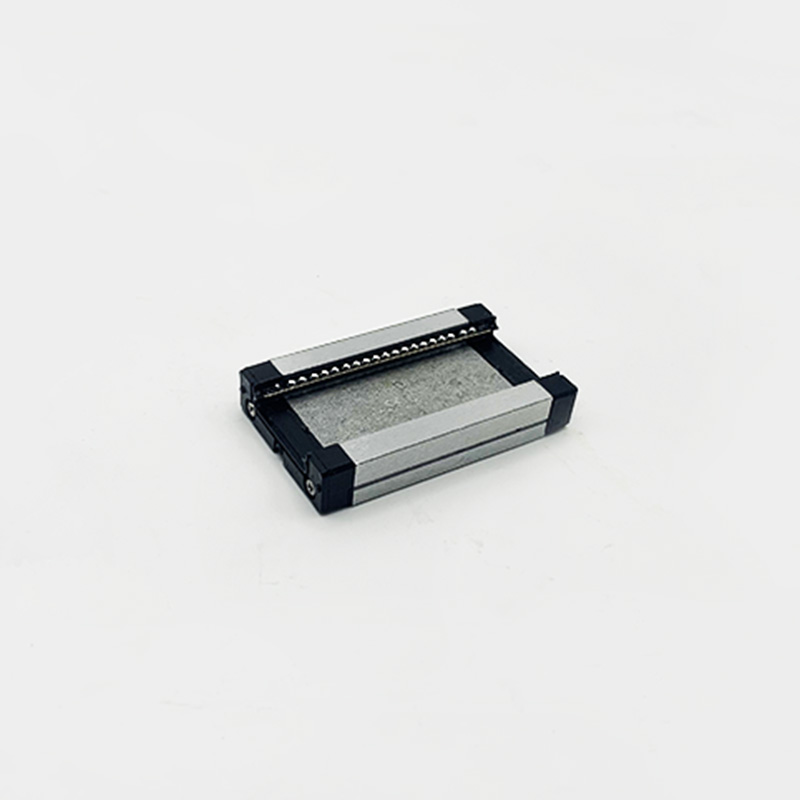

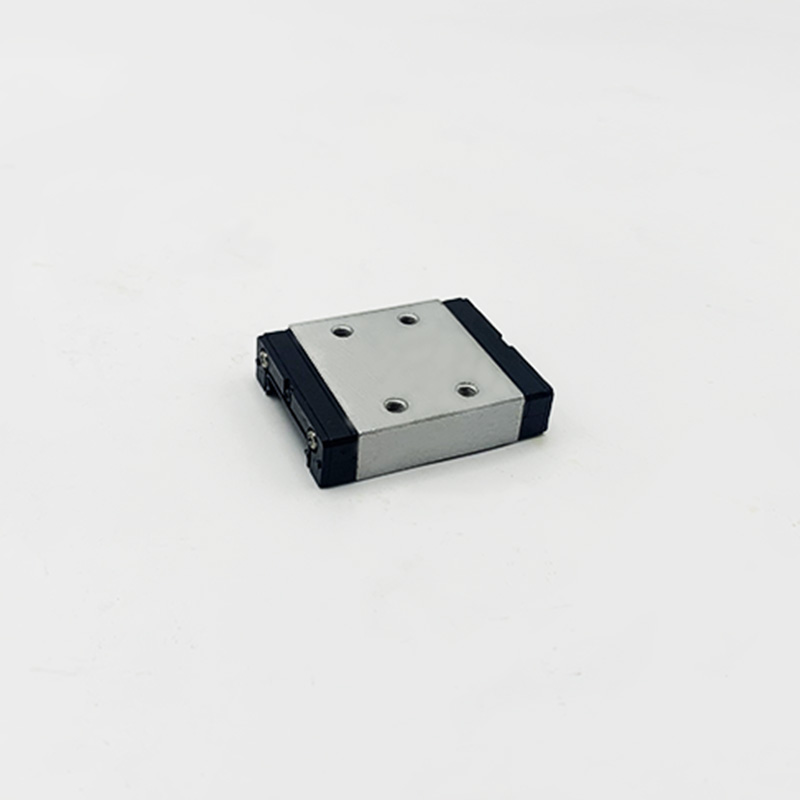

MGW Square And Lengthen Square Linear Guide Slider

The MGW Square and Lengthen Square Linear Guide Slider is designed for high-precision, heavy-load applications. Its widened rail provides excellent load capacity and stability, while the gothic four-point contact design ensures smooth, low-friction motion. Made from durable stainless steel, this guide slider is ideal for CNC machining, automated systems, and robotics. With its reliable performance and ease of integration, the MGW series is a versatile solution for precision linear motion in demanding industrial environments.

Key Features & Benefits

• Stainless Steel Construction
  Built from high-grade stainless steel, the MGW blocks provide excellent corrosion resistance and structural durability. This ensures long service life, even in harsh or high-load environments.

• Miniature Retainer Wire
  A built-in retainer wire prevents ball bearing loss during installation. This simplifies assembly, reduces the risk of operational failure, and supports consistent motion performance over time.

• Interchangeable Rail and Block Design
  The MGW series allows for flexible part replacement without the need for custom fitting. This modularity minimizes downtime and simplifies maintenance in automated production lines.

• Gothic Arch Four-Point Contact
  The guide block’s contact geometry provides equal load distribution in all directions, enabling high-precision, low-friction linear motion ideal for vibration-sensitive tasks.

Application

• CNC Machining
  In CNC milling and drilling operations, stability and precision are critical. The MGW guide block’s widened rail and four-point contact design maintain accuracy even under heavy cutting loads, reducing vibration and ensuring consistently clean finishes. Its stainless steel body withstands coolants and debris, extending system life with minimal maintenance.

• Robotic Automation
  For compact robotic arms and gantry systems, smooth linear motion is essential. MGW’s low-friction architecture enables responsive, precise positioning in confined spaces. The interchangeable design simplifies servicing and upgrades, keeping production lines running with minimal downtime.

• Semiconductor Manufacturing
  In wafer handling and inspection tools, even the slightest mechanical deviation can affect yield. The MGW block delivers ultra-smooth, repeatable motion—thanks to its high-precision build and ball-retention mechanism that minimizes installation errors and performance drift over time.

• Precision Instruments
  Measurement systems demand frictionless travel for consistent results. The MGW’s gothic arch structure ensures uniform load distribution and micron-level precision, making it ideal for sensor tracks, calibration platforms, and optical assemblies where motion control cannot be compromised.

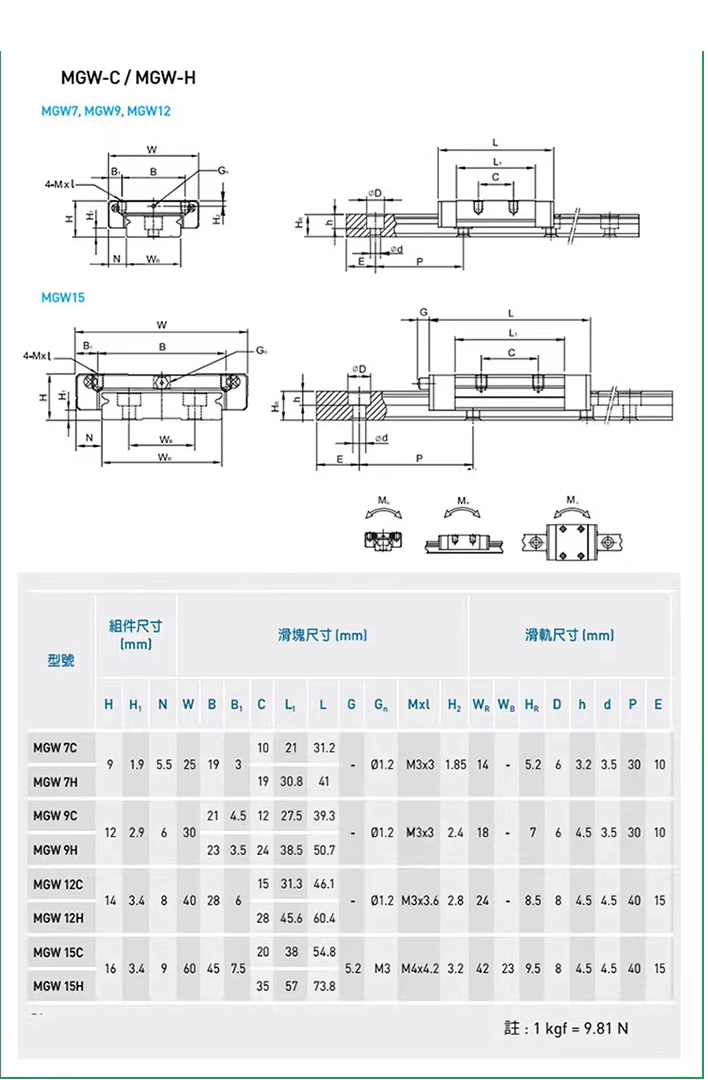

Specifications Table
