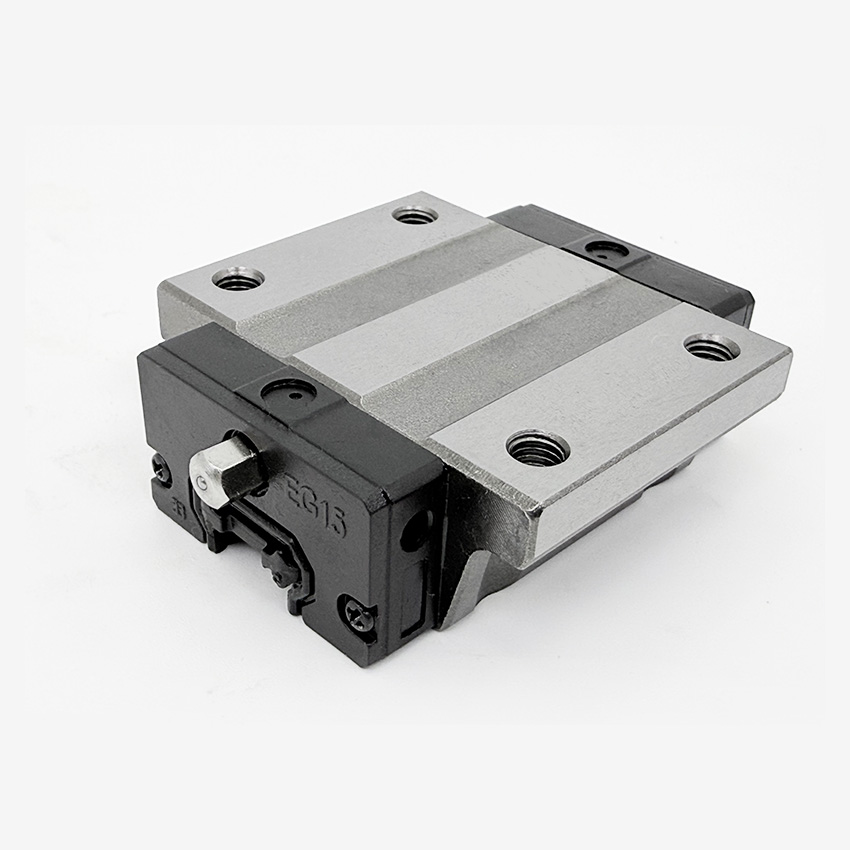

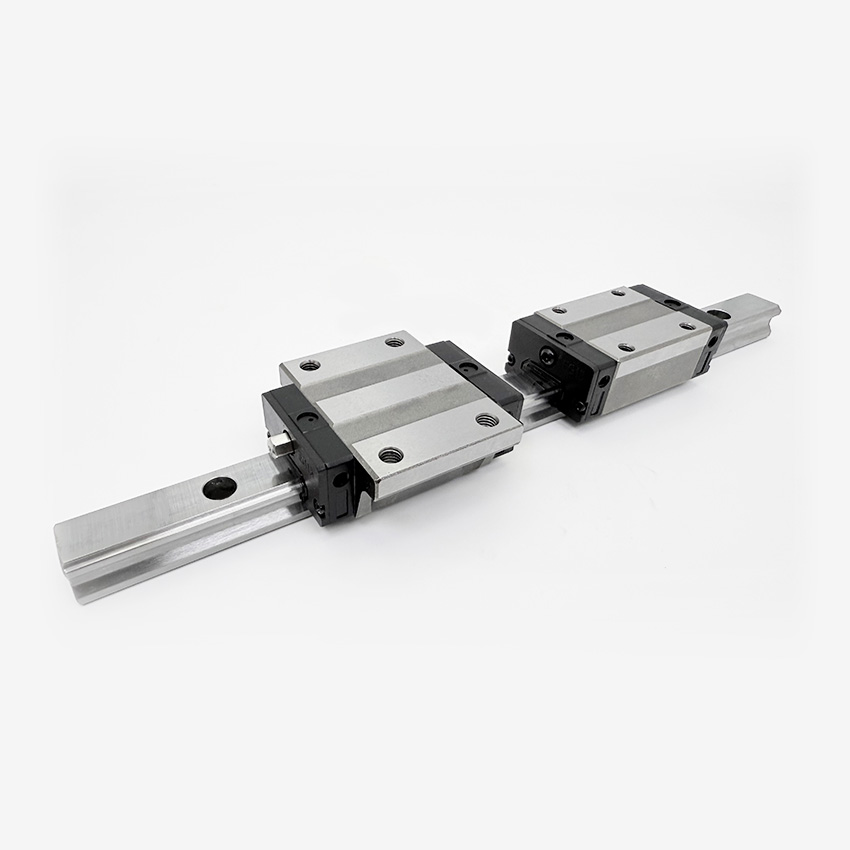

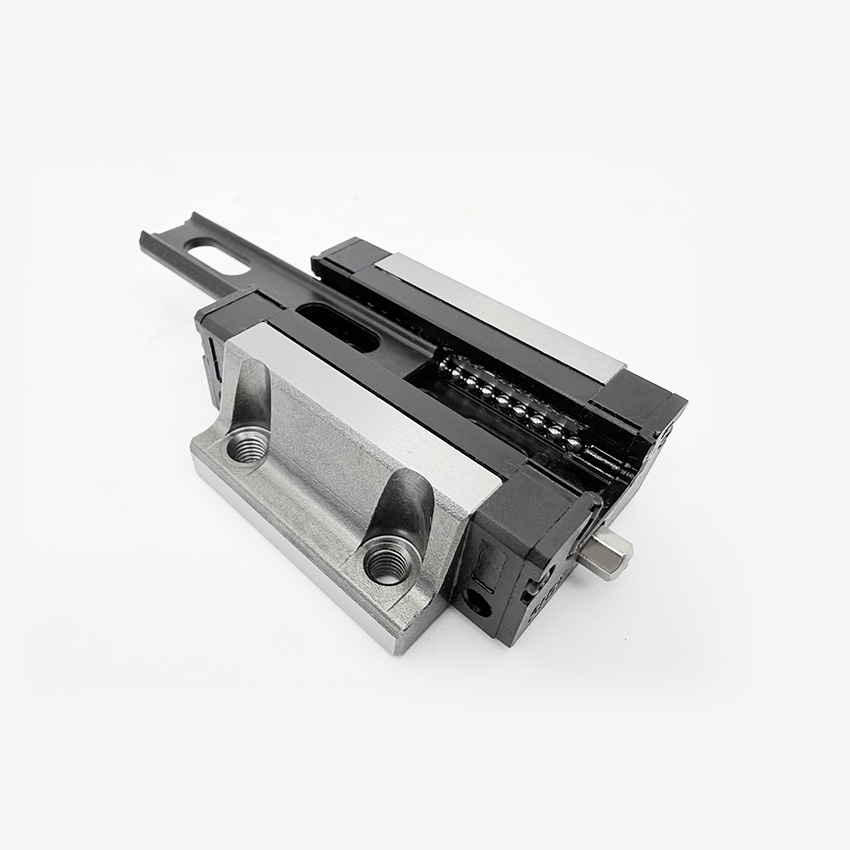

EGW15CC-EGW30CC Flanged Linear Guide Slider

Description: EGW15CC-EGW30CC flanged linear guide slider

Model: EGH15-EGH30

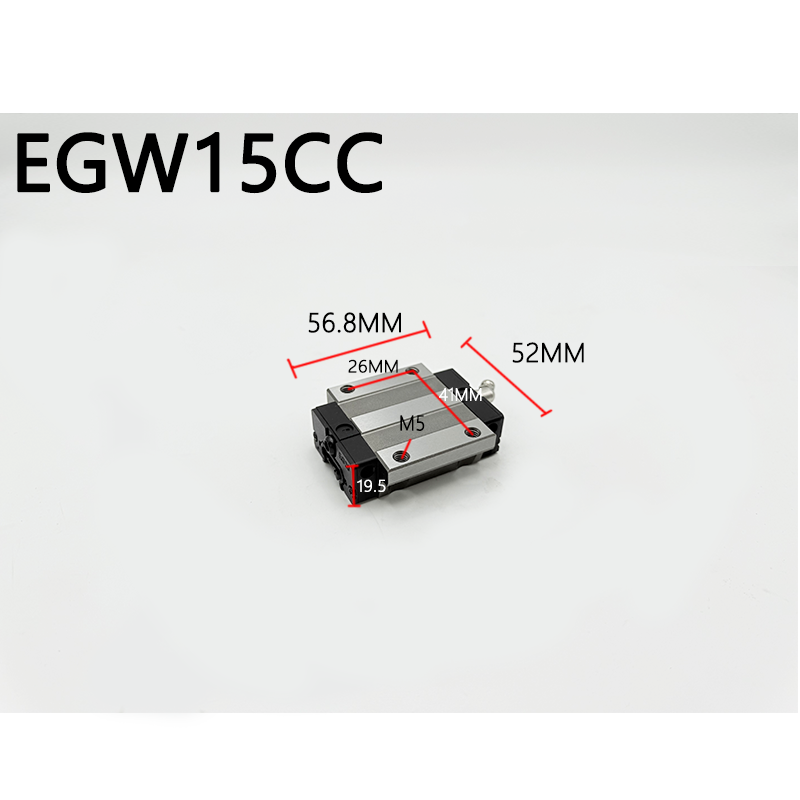

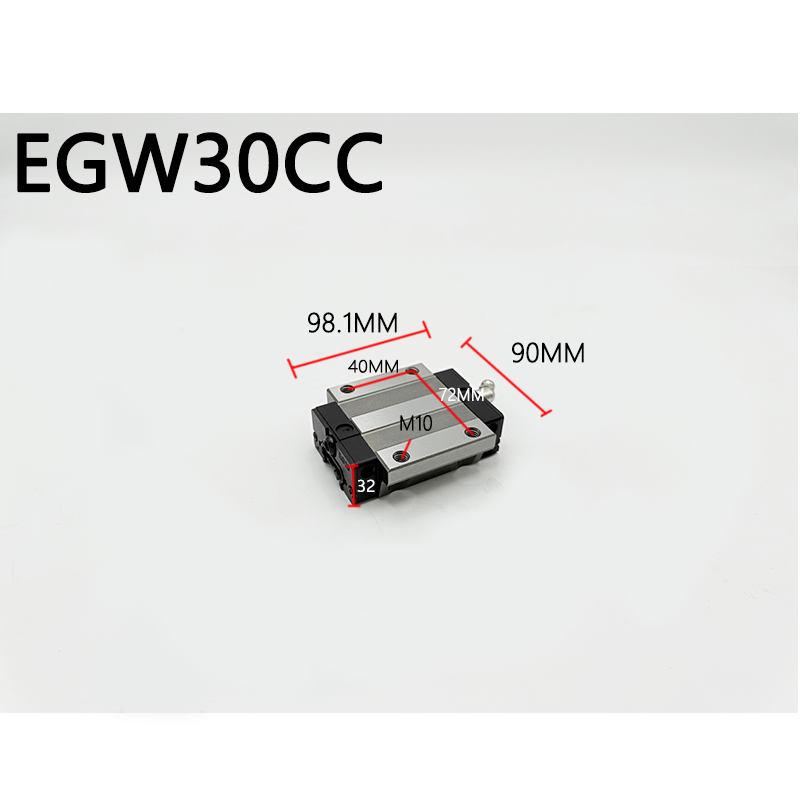

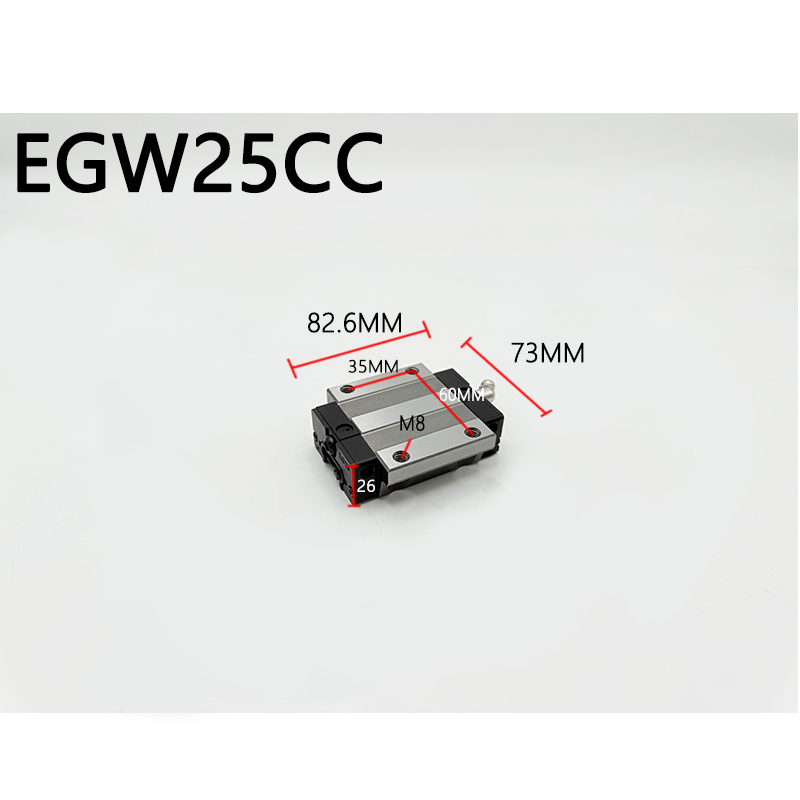

EGW15CC, EGW20CC, EGW25CC, EGW30CC

Material: 55# steel

Hardness: 58-62

Accuracity: C, H, P

EGW Series Linear Guide Slider – Introduction & Advantages

The EGW Series is a popular general-purpose linear guide slider with a wide, low-profile structure. It delivers high rigidity, excellent moment resistance, and stable motion, making it widely used in various automation machines and precision equipment.

Product Features

• Wide and low-center-of-gravity design
Strong rigidity and high anti-overturning moment for stable operation.

• Four-direction equal load capacity
Balanced load performance in radial, reverse-radial, and lateral directions.

• Gothic arch 4-point contact structure
Ensures high rigidity, smooth movement, and high positioning accuracy.

• Self-aligning ability
Absorbs minor mounting surface errors for easier installation.

• Dustproof sealing design
Effectively prevents dust and coolant, ensuring long service life.

• Ball retainer structure (optional)
Prevents balls from falling out during installation and maintenance.

Core Advantages

1. High rigidity and strong moment resistance
Suitable for cantilever, offset load, and single-rail applications.

2. Wide compatibility and versatility
Ideal for most general automation and precision machinery.

3. Easy installation and high interchangeability
Standard dimensions, easy to assemble and replace.

4. Stable and low-noise operation
Low vibration and smooth movement even at medium-high speeds.

5. Cost-effective and durable
Reliable performance with long service life and low maintenance.

Typical Applications

• Automation machinery
• Packaging and printing machines
• Woodworking machinery
• Medical and testing equipment
• Semiconductor and electronic equipment
• Small and medium-sized machine tools
