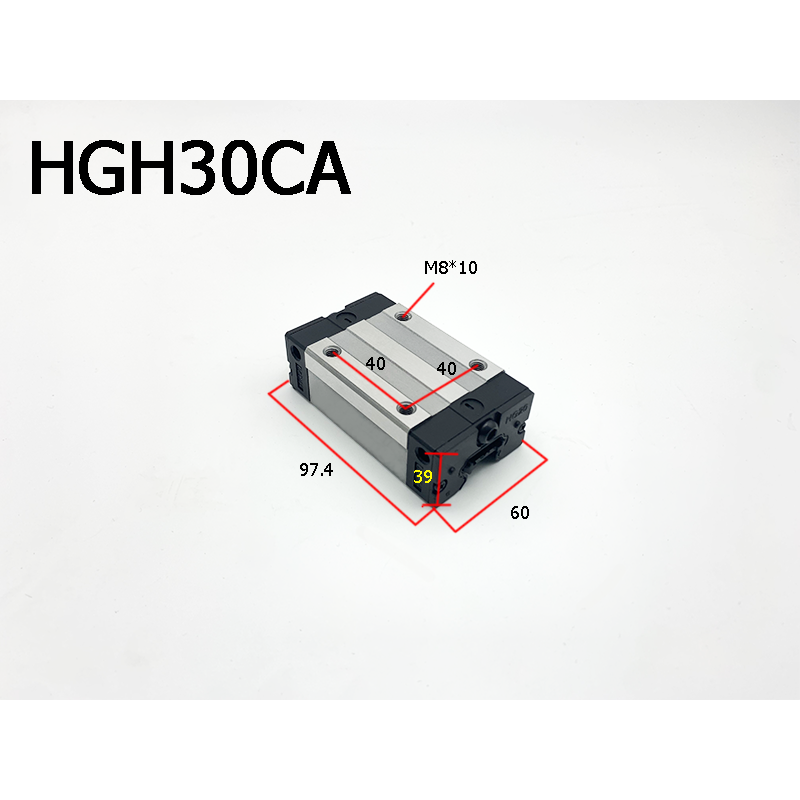

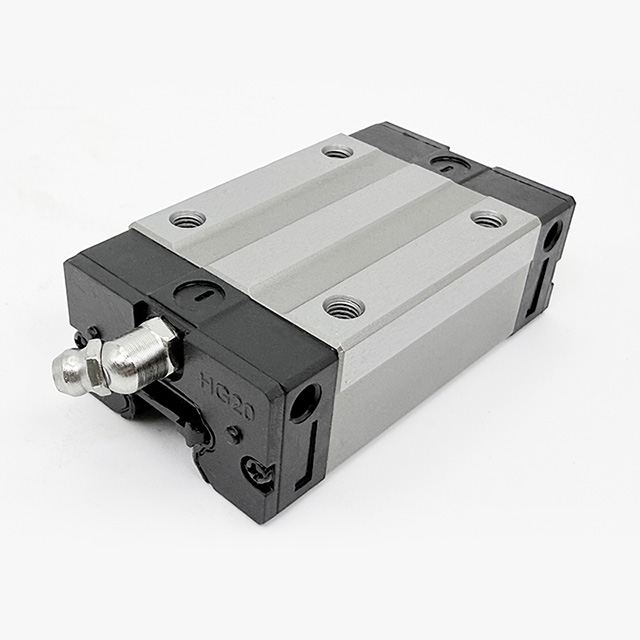

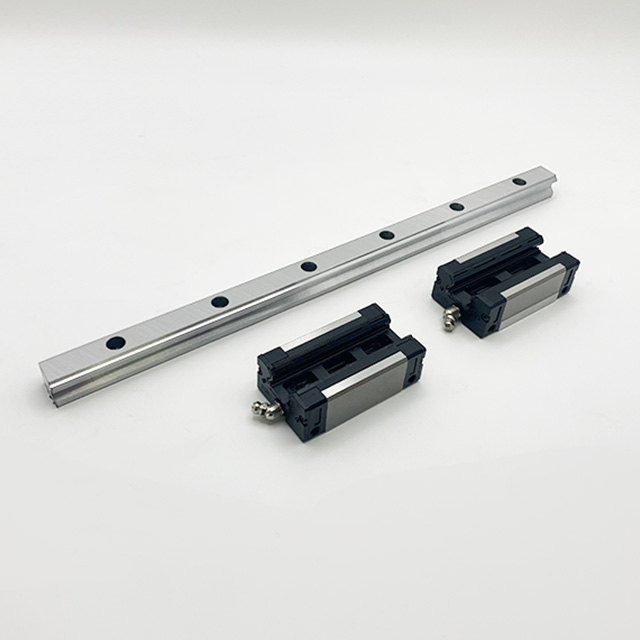

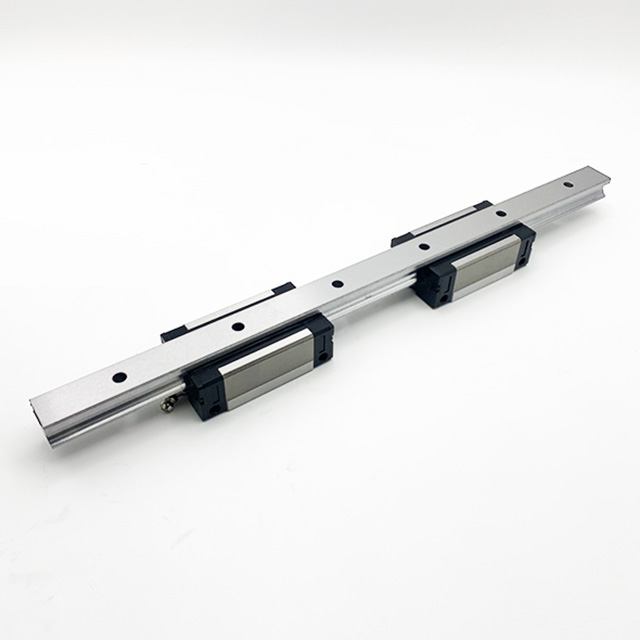

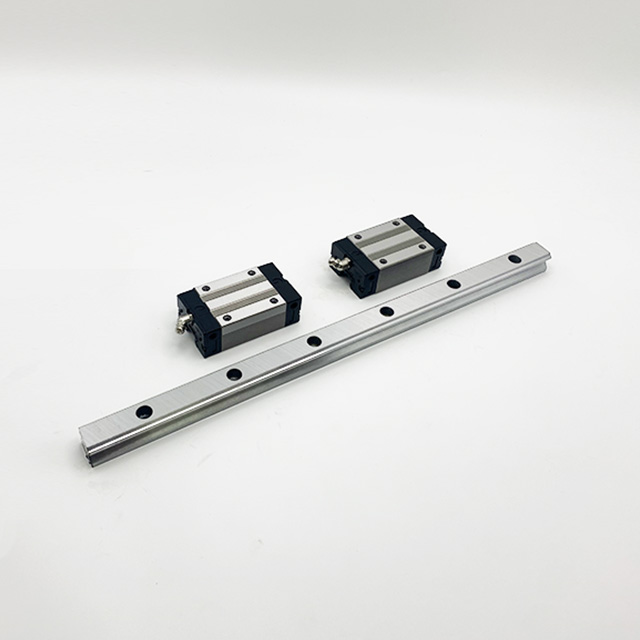

HGH15-65 Square Linear Guide Slider
Description: HGH15-65 square linear guide slider

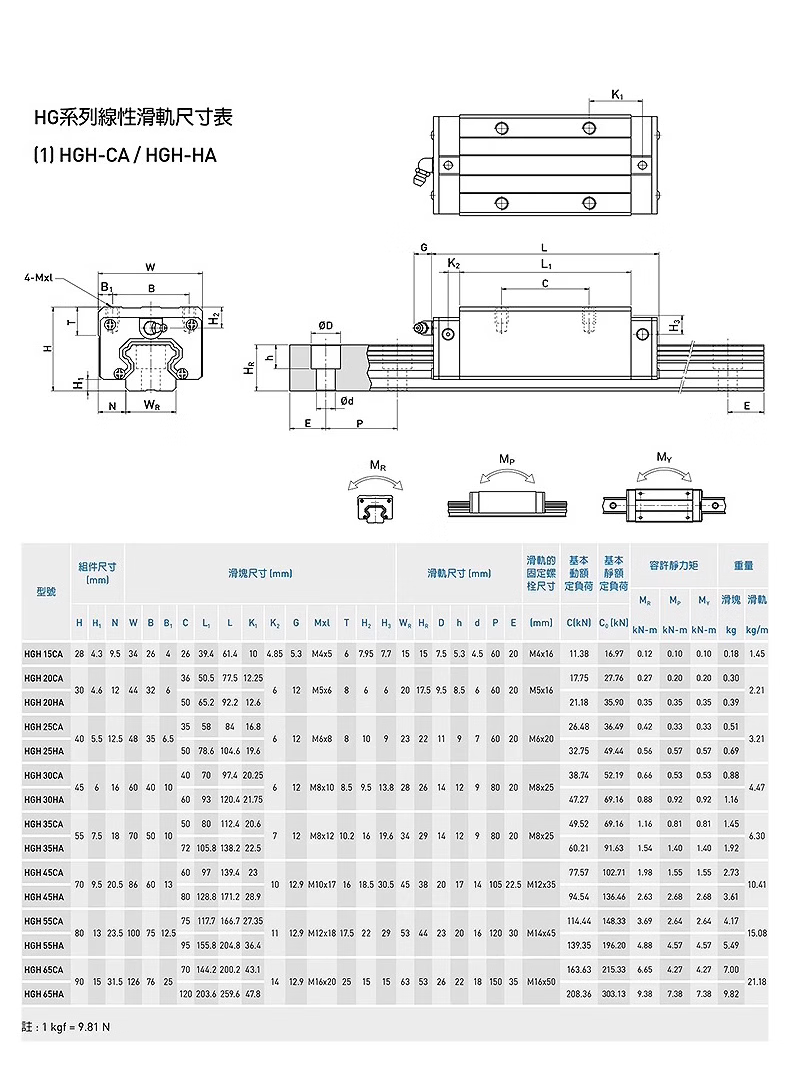

Model: HGH15-HGH65
HGH15CA-HGH65CA
Material: 55# steel
Hardness: 58-62
Accuracity: C,H,P
HGH Series Linear Guide Slider – Introduction & Advantages
The HGH Series is a heavy-duty, high-rigidity linear guide slider widely used in various industrial automation and precision machinery. It features a standard-height, wide rail structure with strong load capacity and excellent stability, making it ideal for heavy-load, high-precision, and long-term operation applications.
Product Features
• Heavy-duty structure design
Higher rigidity and stronger load capacity than general-purpose linear guides, suitable for heavy working conditions.
• Four-direction equal load capacity
Stably bears radial, reverse-radial, and lateral loads with balanced performance.
• Gothic arch 4-point contact structure
Provides high rigidity, high positioning accuracy, and stable motion under heavy load.
• Self-aligning function
Absorbs minor installation surface errors and ensures smooth movement.
• Ball retainer design (optional)
Prevents ball separation for safer installation and maintenance.
• Excellent dustproof and sealing structure
Effectively prevents dust and coolant contamination for long service life.
Core Advantages
1. High rigidity and heavy load capacity
Perfect for heavy-duty machinery with high load and high rigidity requirements.
2. High precision and high stability
Maintains stable accuracy and low vibration even under heavy cutting or high load.
3. Strong moment resistance
Excellent anti-overturning, anti-pitching, and anti-deflection performance.
4. Wide interchangeability and easy installation
Standardized dimensions, compatible with common linear guide systems.
5. High reliability and long service life
Suitable for long-term continuous operation, low failure rate, and low maintenance cost.
Typical Applications
• CNC machine tools and machining centers
• Heavy-duty automation equipment
• Precision grinding machines
• Laser cutting machines
• Automotive processing and assembly equipment
• Large-scale conveying and positioning systems
