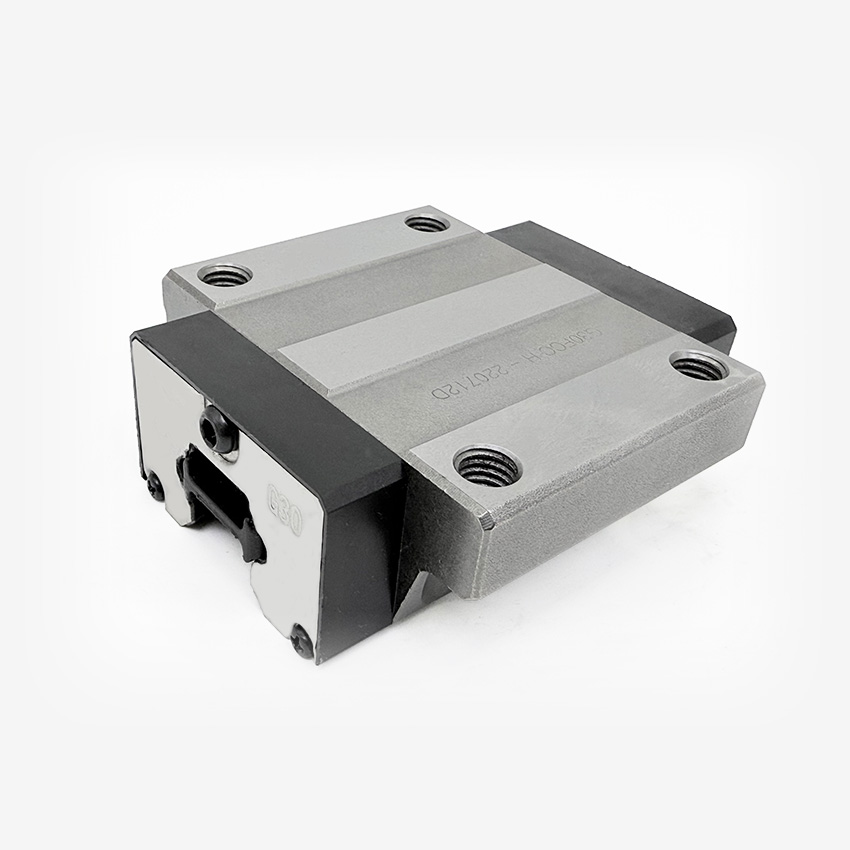

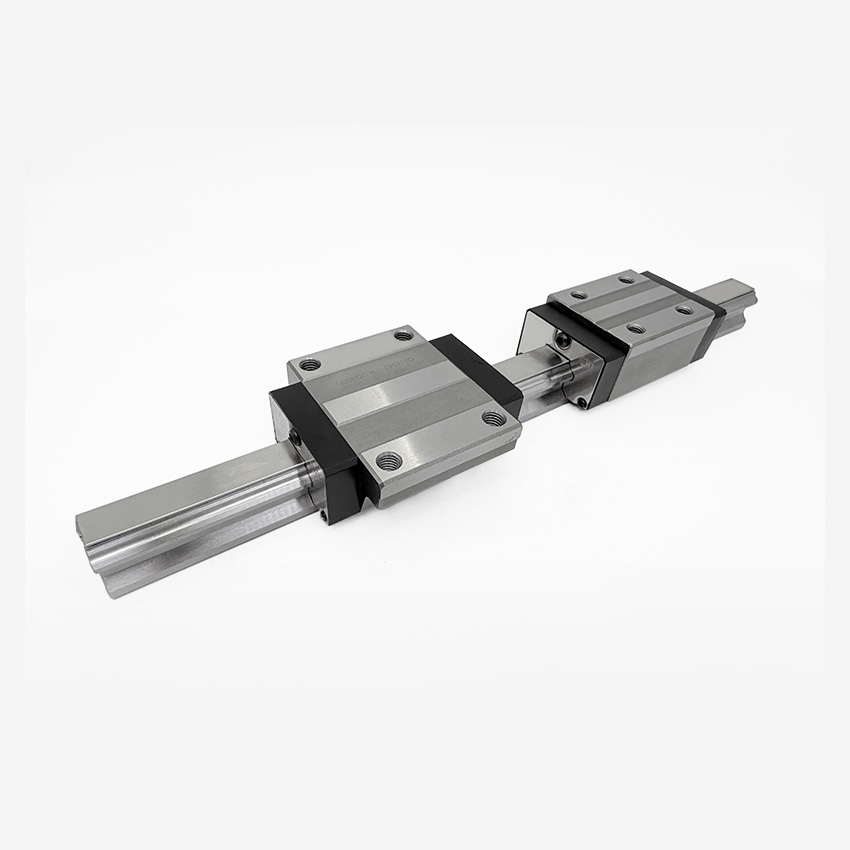

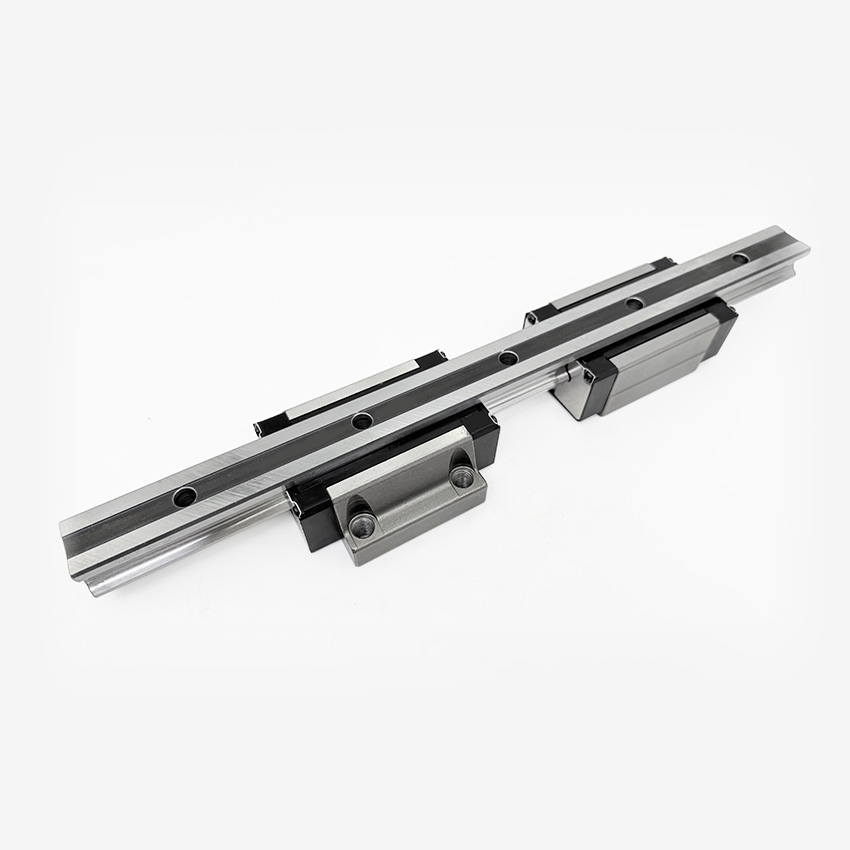

HGW20-HGW35 Steel Belt Linear Guide And Flange Slider

Product Introduction

The Steel Belt Type Linear Guide Rail & Slider is a high-performance linear motion component designed for ultra-clean, high-precision, and dust‑sensitive working environments. It adopts a fully enclosed structure with a flexible stainless steel belt to seal the raceway, effectively isolating dust, coolant, and chips while maintaining smooth linear motion.

Product Features

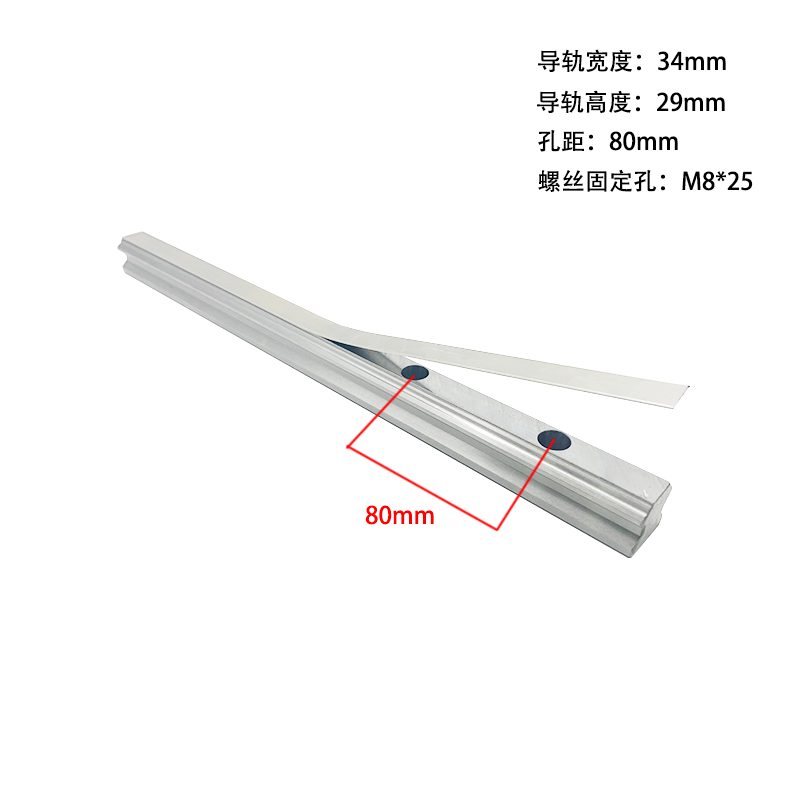

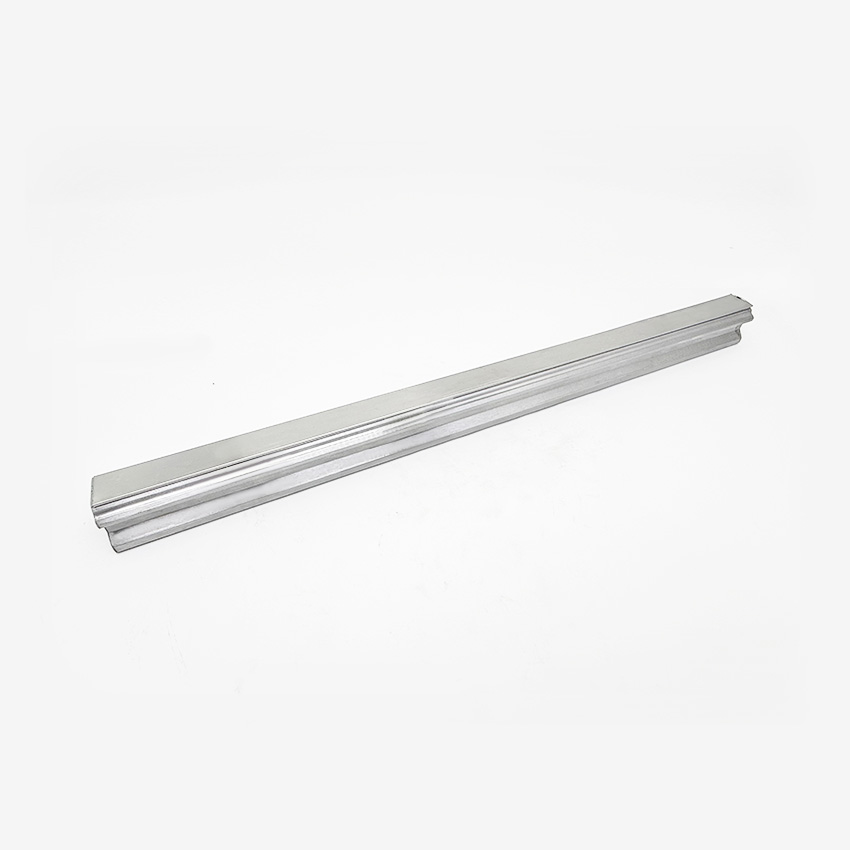

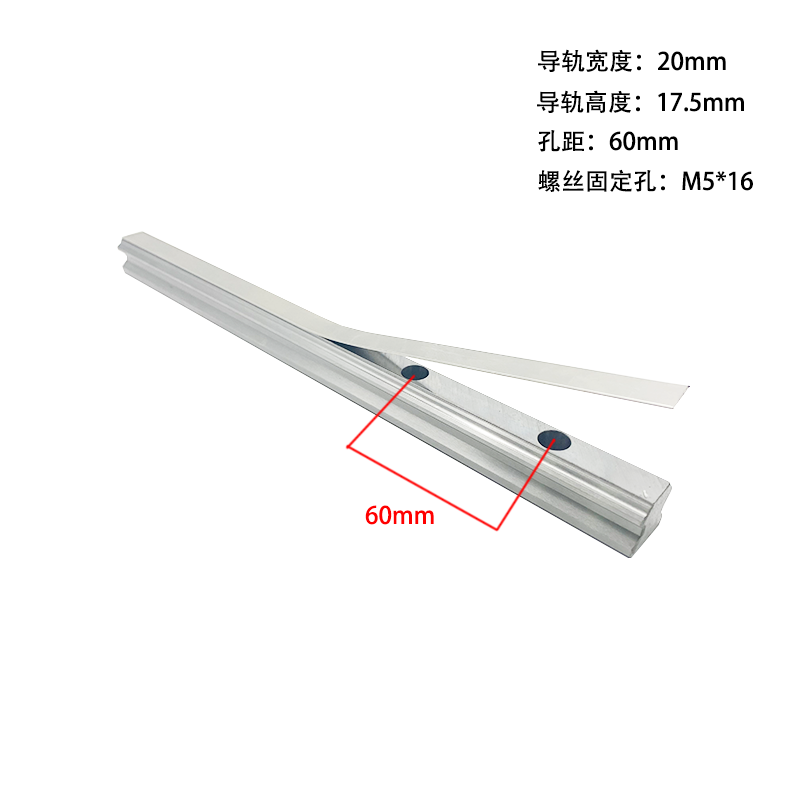

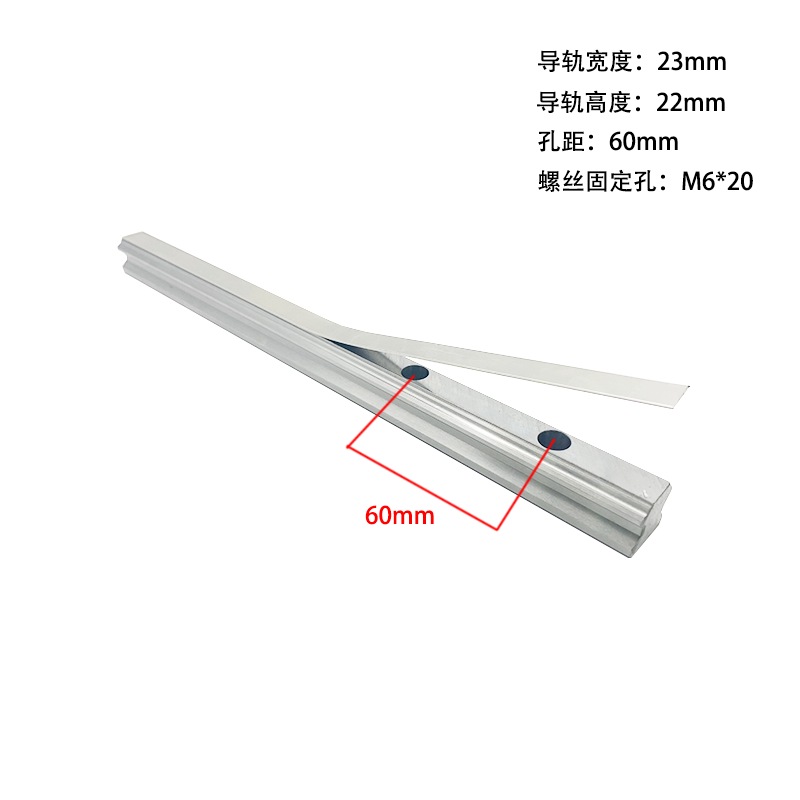

• Full Enclosure with Stainless Steel Belt: The stainless steel belt closely covers the rail surface, forming a sealed protection system for the internal ball circulation structure.

• Low Dust Emission: Minimizes particle release during operation, suitable for cleanroom environments.

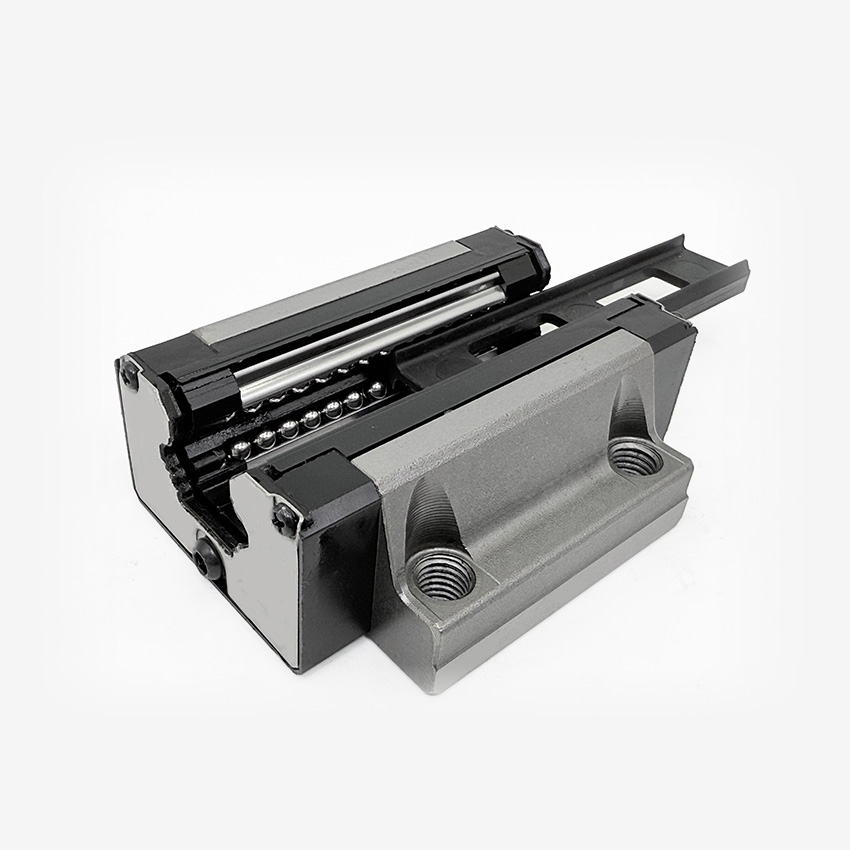

• Smooth Movement & Low Friction: Optimized internal structure and belt design ensure stable, low‑noise, and low‑resistance operation.

• High Rigidity & High Precision: Maintains consistent positioning accuracy and repeatability under light to medium loads.

• Anti‑pollution & Long Service Life: Effectively prevents dust, oil, and coolant from entering the interior, greatly improving service life and stability.



Core Advantages

1. Excellent Sealing & Dustproof Performance
The steel belt structure provides all‑round protection, making it ideal for harsh environments with dust, coolant, or fine particles.
2. Suitable for Cleanroom & High‑Cleanliness Equipment
Low particle generation and fully enclosed design meet the requirements of semiconductor, LCD, pharmaceutical, and precision testing equipment.
3. Smooth, Stable & Low‑Noise Operation
Reduces sliding resistance and vibration, enabling high‑speed and quiet operation.
4. Strong Durability & Reduced Maintenance
Internal components are protected from contamination, reducing wear and extending maintenance cycles.
5. High Positioning Accuracy
Stable motion performance ensures long‑term high precision for automation and precision instruments.

Typical Applications

• Semiconductor manufacturing & testing equipment

• LCD / OLED production equipment

• Medical devices & laboratory instruments

• Precision measuring machines

• Cleanroom automation systems

• Food processing & packaging machinery

Packaging & Logistics

1. Secure Packaging

• Anti-corrosion wrapping protects against moisture.

• Shockproof outer packaging prevents transport damage.

2. Flexible Shipping Options

• Air, sea, and express delivery available.

3. Efficient Lead Time

• Standard models shipped quickly; custom orders handled efficiently.

FAQ

Q1: Can this guide be used in dusty environments?
Yes, the steel belt protection significantly reduces contamination risks.

Q2: What accuracy grades are available?
C, H, and P grades are available depending on your precision needs.

Q3: Is lubrication required?
Yes, periodic lubrication is recommended, though frequency is reduced due to built-in design.

Q4: Can I customize dimensions?
Absolutely, custom specifications can be provided based on your application.
