In precision engineering, movement is everything — and the smallest deviation can lead to the biggest failure.

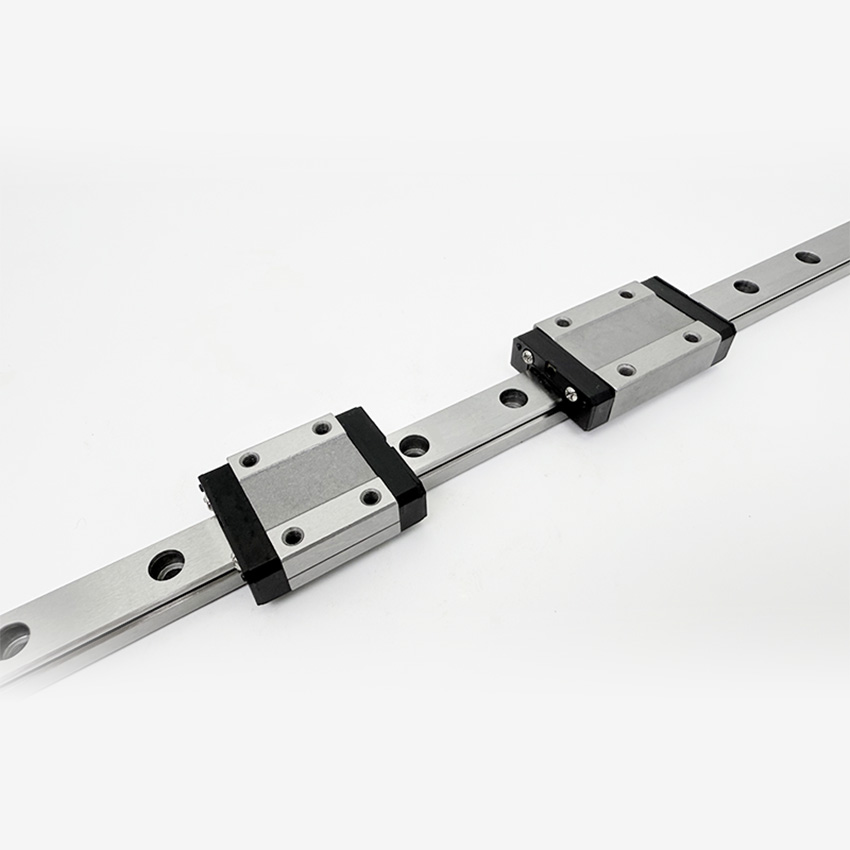

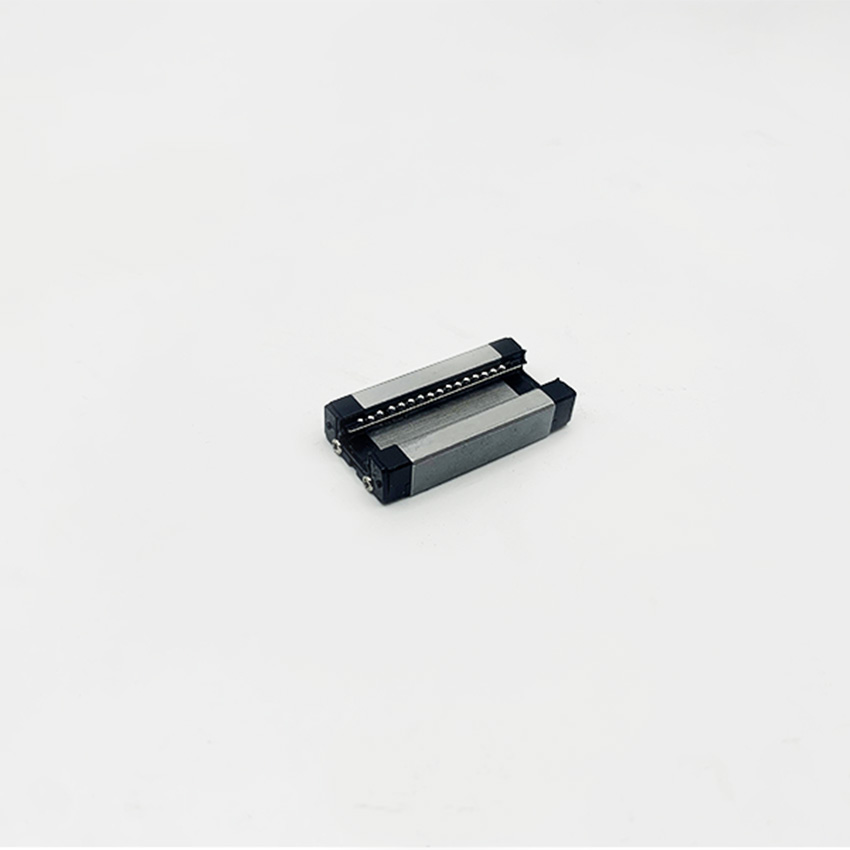

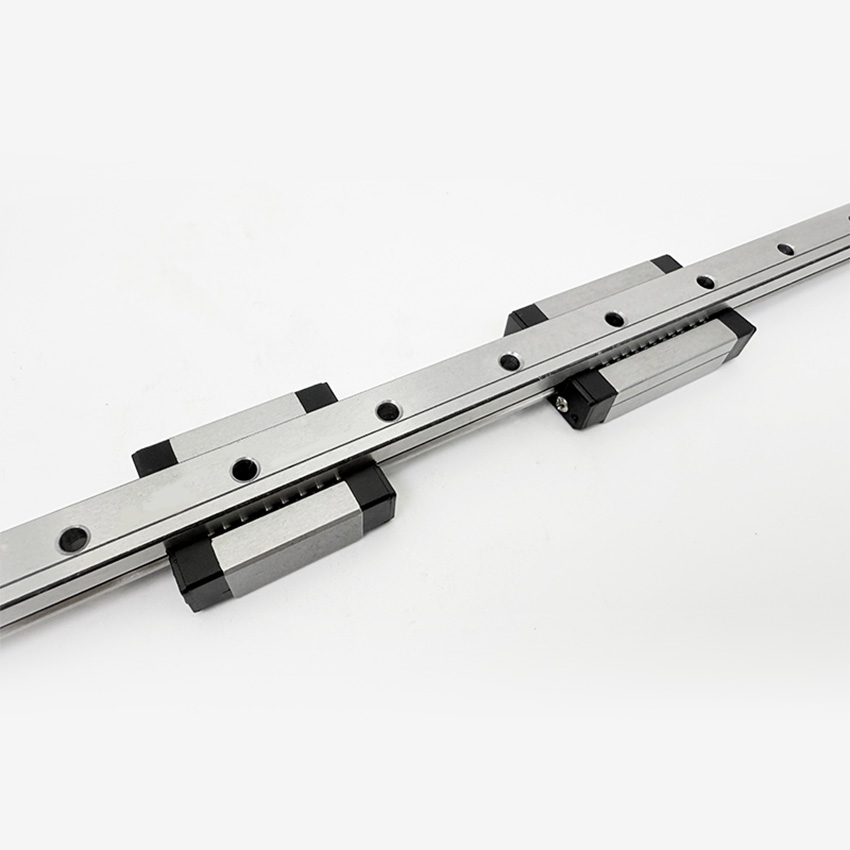

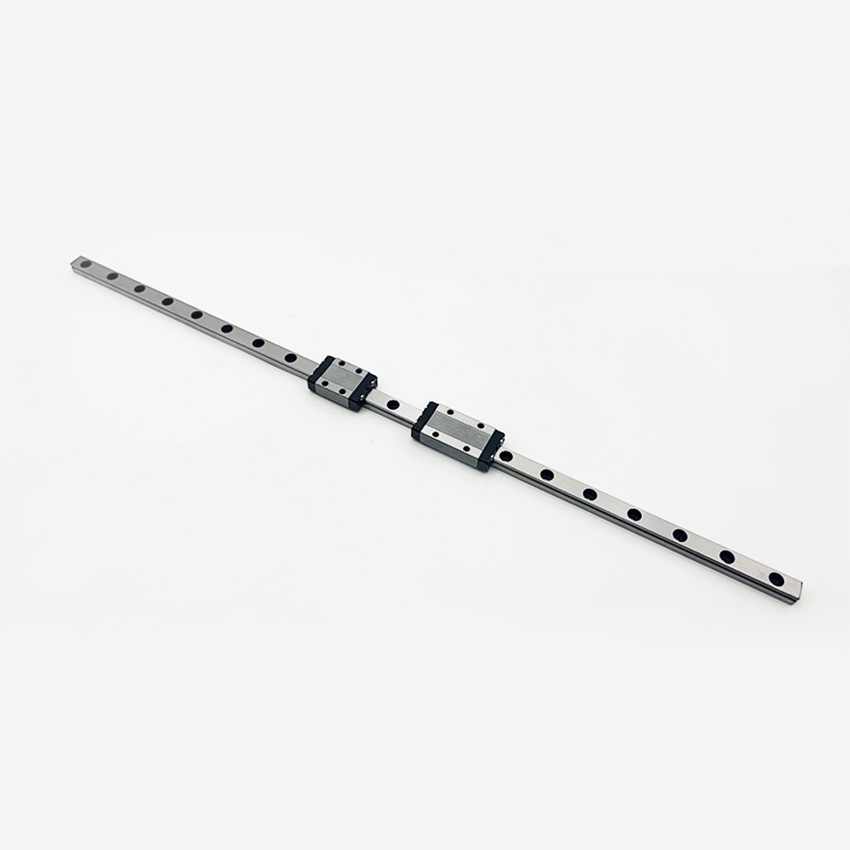

The Miniature Square Linear Guide Slider is designed for applications where every micron matters. When you run your finger along the rail, the surface feels perfectly polished — cool, smooth, and uninterrupted. As the slider glides across the track, there’s no vibration, no hesitation — only controlled, silent motion that reflects true mechanical precision.
This product was developed to meet the growing demand in industries such as automation, medical devices, semiconductor equipment, and precision instruments, where compact size must coexist with high load capacity and ultra-smooth motion.
Unlike conventional linear guides that prioritize size over accuracy, this miniature square design delivers rigidity, repeatability, and long-term stability — even in space-constrained systems.
It’s not just a component. It’s the invisible foundation behind high-performance machines.
 |  |  |  |
 |  |  |  |
The miniature square linear guide slider ensures consistent linear motion with minimal deviation. This directly improves positioning accuracy in automation systems, reducing cumulative mechanical error and improving overall machine performance.
Its miniature structure allows engineers to design smaller, more efficient machines without sacrificing performance. Ideal for compact assemblies where traditional linear guides are too bulky.
Despite its compact size, the square rail design distributes load evenly across the contact surface. This ensures structural stability and reduces deformation under dynamic operation.
The optimized ball circulation system minimizes friction and vibration. This not only enhances performance but also extends the lifespan of surrounding components.
High-quality materials and precision grinding processes ensure durability, even in continuous operation environments. Less wear means fewer replacements and lower maintenance costs.
Years of experience in precision motion components
Advanced manufacturing and grinding technology
Strict adherence to international quality standards
Consistent product quality across large batches
Reliable delivery timelines
Scalable production for OEM needs
Different sizes and configurations available
Custom packaging and branding options
Technical support for system integration
Exported to multiple international markets
Familiar with logistics and compliance requirements
Responsive communication and service
| Feature | Miniature Square Linear Guide | Standard Linear Guide |
| Size | Compact | Larger |
| Precision | High | Medium |
| Application | Precision equipment | General machinery |
| Motion Smoothness | Ultra-smooth | Standard |
| Space Efficiency | Excellent | Limited |
Q1: What industries is this product suitable for?
It is widely used in 3D printer equipment, Car, CNC, Aerospace, War industry, Manipulator, Automation equipment,etc....
Q2: Can the size be customized?
Yes, we support customization based on application requirements.
Q3: How is lubrication handled?
Both grease and oil lubrication options are available depending on usage conditions.
Q4: What is the expected lifespan?
With proper maintenance, the product offers long-term stable performance even under continuous operation.
Q5: Is it suitable for high-speed applications?
Yes, the optimized ball circulation system supports smooth motion at higher speeds.
